NEW BIRMINGHAM H-0435

Florida, United States
3,961Listings|11Followers
Overview
Power Squaring Shears (Gauge)

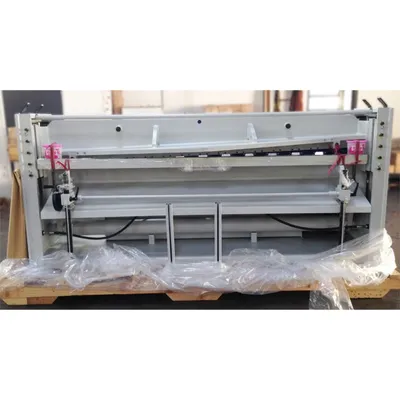

BIRMINGHAM H-0435 hydraulic shear available. This new 4 ft x 10 ga. machine offers reliable cutting performance for demanding metalwork tasks. Ideal for professional environments requiring precision and durability.

Specs
Max Sheet Size (ft)
4'
1,219.2 mm
Length of Blade
4'
1.2 m
Shearing Capacity - Mild Steel
10 gauge
10 gauge
Shearing Capacity - Stainless Steel
13 gauge
13 gauge
Strokes Per Minute (S.P.M.)
44-55
44-55
Hold-Downs Number
8
8
Hold-Downs Pressure (Tons)
2.5 T
2,268 kg
Oil Tank Capacity
25 gal
94.6 L
Back Gauge
24"
609.6 mm
Front Support
40"
1,016 mm
Motor Power
7.5 hp
5.6 kW
Top Blade Rake Adjustment
Hydraulic Adjustment Rake Angle
Hydraulic Adjustment Rake Angle
Top Blade Rake Angle
1/2 - 2°
1/2 - 2°
Dimensions
91"x 48"x 63" (approx)
91"x 48"x 63" (approx)
Weight
4,000 lbs.
4,000 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
