NEW TIN KNOCKER TK 2248

USD $1,890.00
1 available
Overview
Manufacturer:
TIN KNOCKER
Model:
TK 2248
Stock #:
TKB&P2248
Description

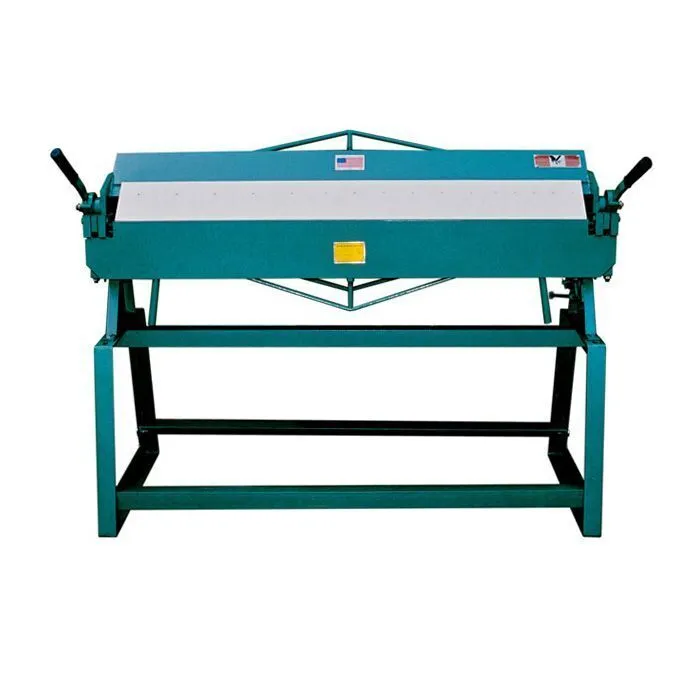

TIN KNOCKER TK 2248 Box and Pan Brake has a bend length of 48 inches (4 feet) and mild steel capacity of 22 gauge.Of all steel welded construction, with adjustable truss bars and bronze bushings. The brakes come with removable apron angle and apron insert, permitting .25" (6.35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends.

Specifications
Capacity (ga) Mild Steel22 gauge22 gauge
Bending Length (inches)48"1,219.2 mm
Max Box Depth3"76.2 mm
Minimum Flange in Capacity Material0.375"9.525 mm
Maximum Lift of Beam0.875"22.225 mm
Minimum Reverse Bend0.3125"7.9375 mm
Machining Length64"1,625.6 mm
Machine Width28"711.2 mm
Machine Height32"812.8 mm
Shipping Weight356 lb161.5 kg
Dimensions64 x 28 x 32 in.64 x 28 x 32 in.
Weight356 lbs.356 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited

* Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150

Equipped With

Optional Items:
Optional Stand .............. $195.00
