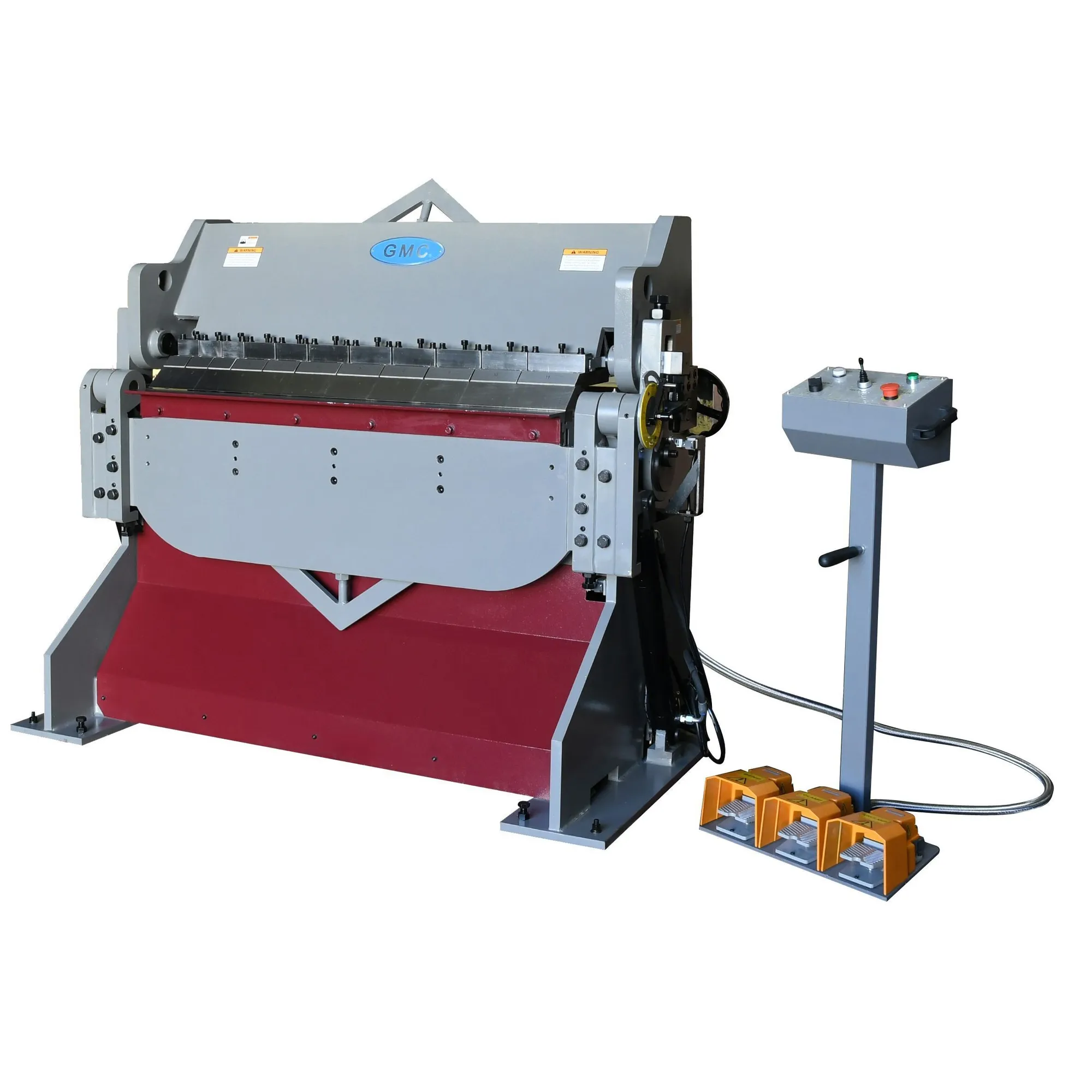

GMC HBB-0410 Hydraulic Box and Pan Brake has a 4 foot max bending length and 10 gauge mild steel capacity. This machine is made in Taiwan. 26" manual back gauge with handwheel. Heavy welded all steel construction for maximum rigidity.
| Capacity (ga) Mild Steel | 10 gauge | 10 gauge |
| Capacity (ga) Stainless | 12 gauge | 12 gauge |
| Capacity (in.) Aluminum | 0.25" | 6.35 mm |
| Bending Length (ft) | 4' | 1,219.2 mm |
| Hemming Max Thickness | 24 gauge | 24 gauge |
| Bending Angle/Degree | 135 Degrees | 135 Degrees |
| Max. Box Depth | 6.02" | 152.91 mm |
| Beam Opening | 3" | 76.2 mm |
| Manual Back Gauge | 26" | 660.4 mm |
| Oil Tank | 10 gal | 37.9 L |
| Hydraulic Oil | Shell #68 or equivalent | Shell #68 or equivalent |
| Main Motor | 5 HP | 5 HP |
| Power Requirement | 3 Phase | 3 Phase |
| Prewired Voltage | 220V/15AMP | 220V/15AMP |
| Optional Voltage | 440V/10AMP | 440V/10AMP |
| Machine Weight | 4,050 lb | 1,837.1 kg |
| Shipping Weight | 4,100 lb | 1,859.7 kg |
| Overall Dimensions | 67 x 46 x 67 in. | 67 x 46 x 67 in. |
| Shipping Dimensions | 80 x 40 x 65 in. | 80 x 40 x 65 in. |
| Dimensions | 67 x 46 x 67 in. | 67 x 46 x 67 in. |
| Weight | 4100 lbs | 4100 lbs |
Mild Steel - HRS (tensile 60K PSI)
Stainless Steel (tensile 85K PSI)
Soft Aluminum (tensile 28K PSI)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
One-piece straight finger instead of assorted fingers , extra - Call for pricing
Safety fence for enclosure of the front side of the machine - Call for pricing
Safety light curtain - Call for pricing
3" replacement finger - Call for pricing
4" replacement finger - Call for pricing
5" replacement finger - Call for pricing
6" replacement finger - Call for pricing
