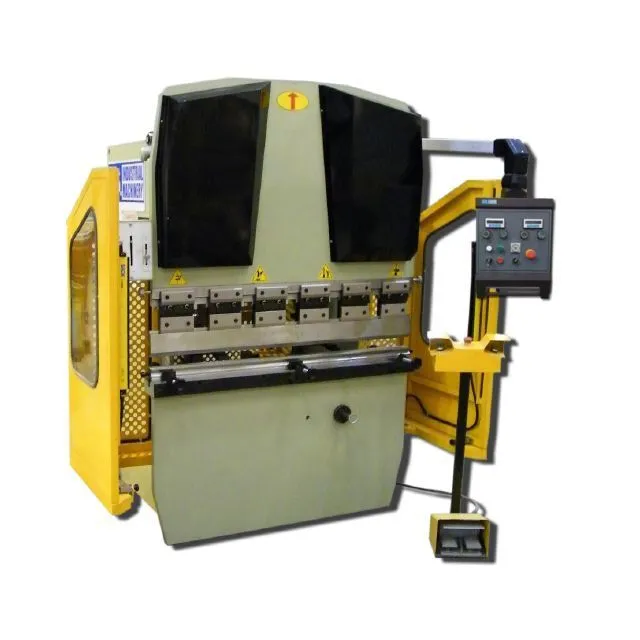

U.S. INDUSTRIAL USHB22-4HM Hydraulic Press Brake 22 Ton working pressure and 4 ft Length of working table. Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel. FRONT OPERATED POWER BACKGAUGE, POWER RAM ADJUST, MANUAL FINE ADJUST HANDWHEELS and DIGITAL POSTION DISPLAYS. Equipped with Sick deTec 4 Light Curtain.
| Pressure Tonnage | 22 T | 19,958.1 kg |
| Bending Capacity Max Length | 51.9" | 1,318.3 mm |
| Distance Between Housings | 40.1" | 1,018.5 mm |
| Throat depth | 7.8" | 198.12 mm |
| Pressing Speed | Dependent on Tool Load | Dependent on Tool Load |
| Stroke Adjustment of Ram | 2.75" | 69.85 mm |
| Rapid Ram Travel Speed | 2.4 in/sec. | 61 mm/sec. |
| Rapid Ram Retreat Speed | 2 in/sec. | 50.8 mm/sec. |
| Ram Travel | 3.14" | 79.756 mm |
| Open Height | 9.64" | 244.86 mm |
| Hydraulic Oil Capacity | 21 gal | 79.5 L |
| Motor | 7.5 HP, 220 or 440V, 3 ph (specify) | 7.5 HP, 220 or 440V, 3 ph (specify) |
| Shipping Weight | 4,400 lb | 1,995.8 kg |
| Dimensions | 73 x 56 x 77 in. | 73 x 56 x 77 in. |
| Weight | 4400 lbs. | 4400 lbs. |
*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
*Upgrade to Cam-Lever Quick Action Ram Clamps
*Training in our Memphis, TN Showroom
*Training at customer site, less than 300 miles from Memphis
*Training at customer site, more than 300 miles from Memphis
*Training outside continental USA
