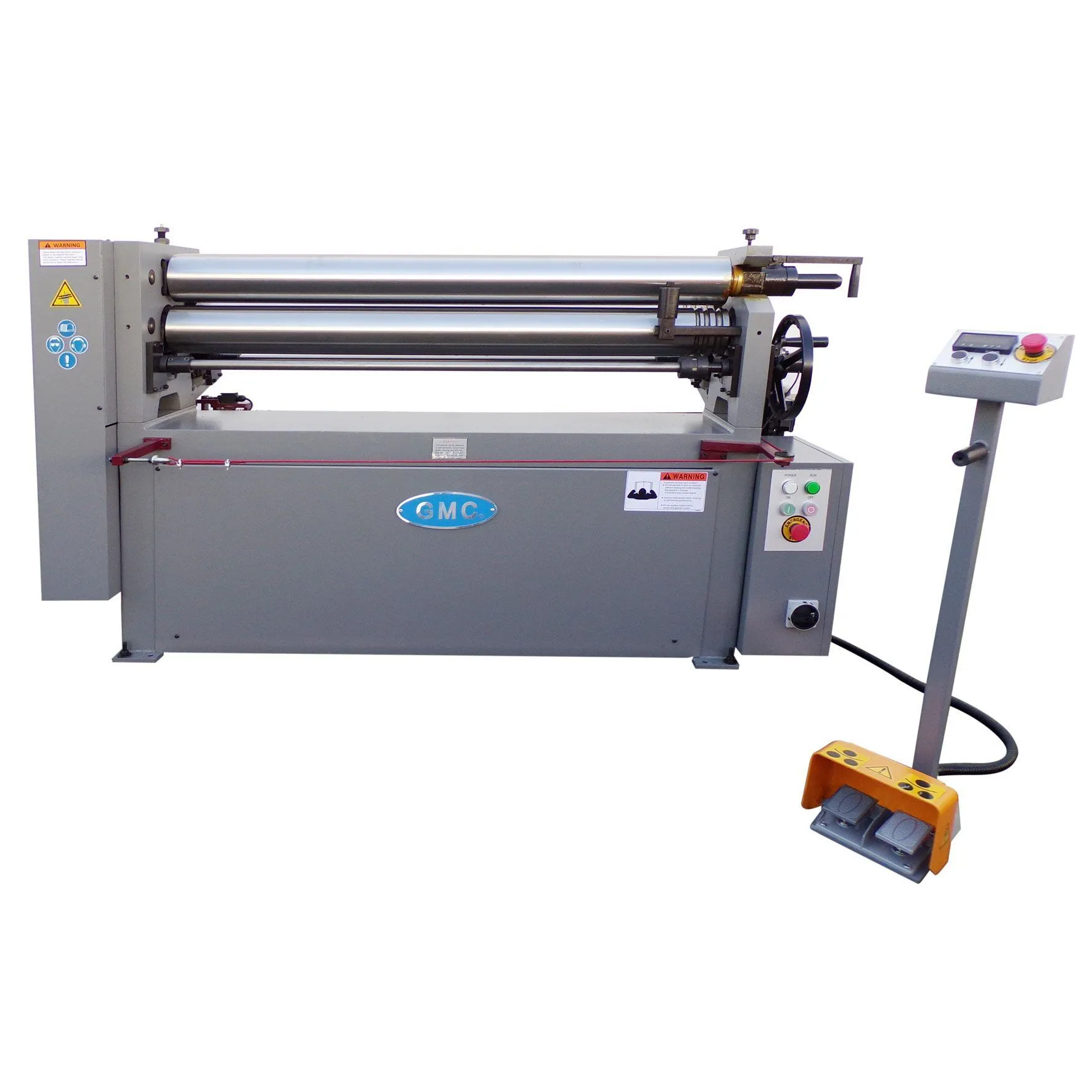

NEW GMC MACHINE TOOLS PBR-04316E

Florida, United States
Asking Price
USD $15,850.00
1 available
3,834Listings|9Followers
Overview
Plate Bending Rolls including Pinch

GMC PBR-04316E Power Bending Roll has a mild steel capacity of 4 foot x 3/16 inches. E 3-roll bender models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs. This Bending Roll Machine is Made in Taiwan.All (3) rolls are hardened rolls as standard feature and 3-rollers are driven to perform high accuracy. 3/8”, 1/2” and 5/8” grooves on rollers.One wheel one-site operated for pinch roll (E model is powered).Heavy duty all steel welded construction.

Specs
Length of Rolls
4'
1.2 m
Capacity - Mild Steel
0.1875"
4.7625 mm
Capacity - Stainless Steel
10 gauge
10 gauge
Capacity - Soft Aluminum
0.3125"
7.9375 mm
Min. Thickness
26 gauge
26 gauge
Rolls Opening
0.5"
12.7 mm
Roll Diameter
4.75"
120.65 mm
Rolls Speed
20 ft/min.
6,096 mm/min.
Pre-bend
0.16"
4.064 mm
Power
3 hp
2.2 kW
Voltage
220V or 440V (specify)
220V or 440V (specify)
Phase
3-phase
3-phase
Dimensions
78 x 30 x 52 in.
78 x 30 x 52 in.
Weight
2,750 lbs.
2,750 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
