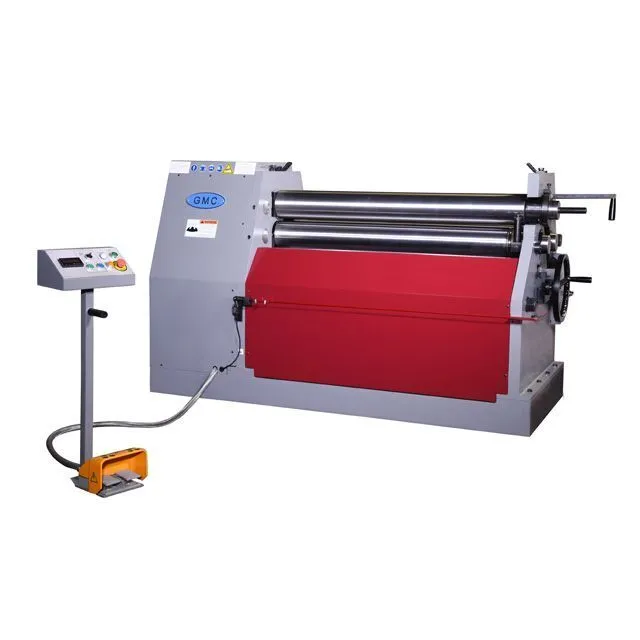

NEW GMC MACHINE TOOLS HBR-0425

Florida, United States
Asking Price
USD $19,850.00
1 available
3,834Listings|9Followers
Overview
Plate Bending Rolls including Pinch

GMC HBR-0425 Initial Pinch Hydraulic Plate Bending Roll has a mild steel roll capacity of 4 feet x 1/4 inches. Power source is 208V/220V. This hydraulic plate rolling machine is made in Taiwan. Standard cone attachment installed. Heavy Duty all steel welded machine construction.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
48"
1.2 m
Max Thickness (gauge)
22 gauge
22 gauge
Pre-Bending Thickness
0.18"
4.572 mm
Capacity - Mild Steel
0.25"
6.35 mm
Capacity - Stainless Steel
0.1875"
4.7625 mm
Capacity - Soft Aluminum
0.375"
9.525 mm
# Rolls
3
3
Roll Diameter
6"
152.4 mm
Min. Roll Diameter
8"
203.2 mm
Roll Speed
5 RPM
5 RPM
Rolls Opening
2.5"
63.5 mm
Oil Tank Capacity
12 gal
45.4 L
Power
3 hp
2.2 kW
Voltage
220V or 440V (specify)
220V or 440V (specify)
Amperage
10A (220V) / 5A (440V)
10A (220V) / 5A (440V)
Dimensions
87 x 36 x 53 in.
87 x 36 x 53 in.
Weight
4,150 lbs.
4,150 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
