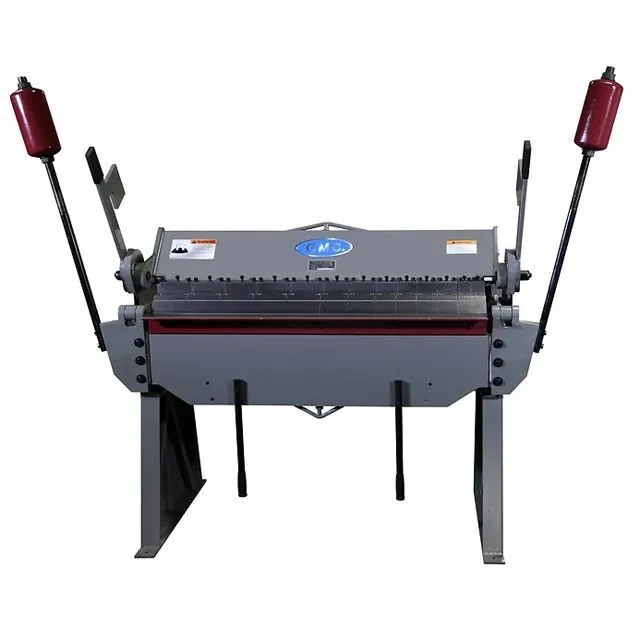

GMC BB-412-6HD Manual Box & Pan Brake has a 4 foot bending length capacity and 12 gauge bending capacity in mild steel.Includes 9 fingers total: (measures 49") Hem light gauge material 26 Ga. or thinner.
| Capacity (ga) Mild Steel | 12 gauge | 12 gauge |
| Capacity (ga) Stainless Steel | 16 gauge | 16 gauge |
| Max. Hemming Thickness for Mild Steel | 26 gauge | 26 gauge |
| Bending Length (inches) | 4' | 1,219.2 mm |
| Max Box Depth | 6" | 152.4 mm |
| Bending Angle | 0-135° | 0-135° |
| Beam Adjustment, Front and Back | 1" | 25.4 mm |
| Manual Clamping | Standard | Standard |
| Beam Opening | 1.5625" | 39.688 mm |
| Minimum Reverse Bend | 0.5" | 12.7 mm |
| Machining Length | 82" | 2,082.8 mm |
| Machine Width | 32" | 812.8 mm |
| Machine Height | 69" | 1,752.6 mm |
| Shipping Dimensions LxWxH | 67 x 30 x 38 in. | 67 x 30 x 38 in. |
| Net Weight | 1,150 lb | 521.6 kg |
| Shipping Weight | 1,265 lb | 573.8 kg |
| Dimensions | 67 x 30 x 38 in. | 67 x 30 x 38 in. |
| Weight | 1265 lbs. | 1265 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
