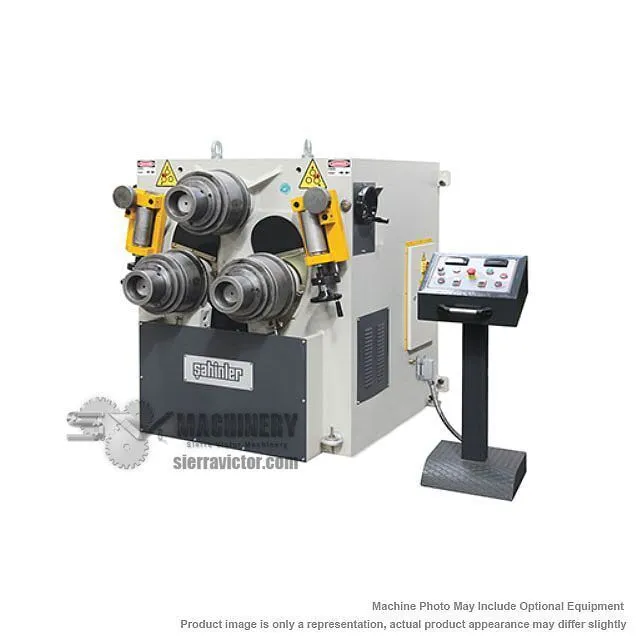

Three Rolls are Powered. Standard Rolls Handle Many Shapes. 3-Axis Manual Lateral Guide Rolls. 2-Electronic Digital Readouts (LED). Horizontal and Vertical Working Positions.
| Roll Diameter Ø | 12.4" | 0.3 m |
| Angle Roll Type | Hydraulic | Hydraulic |
| Shaft Ø | 3.94" | 100.08 mm |
| Motor Power | 10 HP | 10 HP |
| Driven Rolls | 3 | 3 |
| Rolling Speed, FPM | 23 | 23 |
| Roll Adjustment | Hydraulic | Hydraulic |
| Pipe Capacity | 4" Sch. 40, ø40" | 4" Sch. 40, ø40" |
| Round Tube Capacity | (SP) 5" x 12 ga., ø56" | (SP) 5" x 12 ga., ø56" |
| Square Tube Capacity | 3-1/8" x 3-1/8" x 3-1/16", ø60" | 3-1/8" x 3-1/8" x 3-1/16", ø60" |
| Rectangular Tube Capacity | 4" x 1-1/2" x 5/32", ø52" | 4" x 1-1/2" x 5/32", ø52" |
| Square Bar | 2-3/8", ø30" | 2-3/8", ø30" |
| Round Bar | (SP) 3", ø32" | (SP) 3", ø32" |
| Flat Bar Easy Way | 6-5/16" x 1-3/8", ø32" | 6-5/16" x 1-3/8", ø32" |
| Flat Bar Hard Way | 4" x 3/4", ø32" | 4" x 3/4", ø32" |
| Angle Iron Leg-In | 4" x 4" x 3/8", ø40" | 4" x 4" x 3/8", ø40" |
| Angle Iron Let-Out | 4" x 4" x 1/2", ø40" | 4" x 4" x 1/2", ø40" |
| T-Iron Leg-In | 3-1/2" x 3/8", ø40" | 3-1/2" x 3/8", ø40" |
| T-Iron Leg-Out | 4" x 7/16", ø40" | 4" x 7/16", ø40" |
| Channel Leg-In | 7", ø40" | 7", ø40" |
| Channel Leg-Out | 7", ø36" | 7", ø36" |
| Upper Roll Dia. | 12.4" | 314.96 mm |
| Lower Roll Dia. | 12.4" | 314.96 mm |
| Style | Double Pinch | Double Pinch |
| Working Plane | Horizontal/Vertical | Horizontal/Vertical |
| Digital Readout | Yes | Yes |
| Dimensions | 79 x 57 x 67 in. | 79 x 57 x 67 in. |
| Weight | 8800 lbs. | 8800 lbs. |
*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
* Pipe/Tube/Shape Bending Rolls
* Infinitely Variable Rolling Speeds
* Hydraulic 3- Axis Leg-In Guide Rolls
* NC Control
