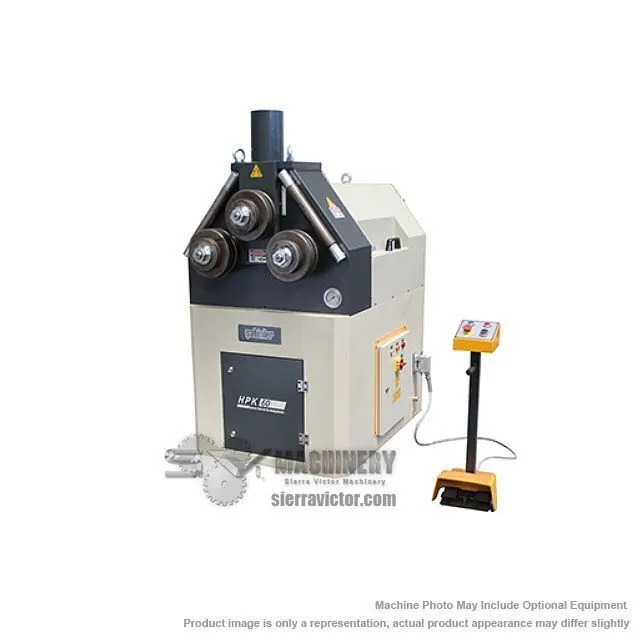

COLE-TUVE HPK-60 Hydraulic Pyramid Angle, Pipe and Shape Bending Roll has a 3" Pipe Capacity. Three rolls are powered. Rolls are hardened. Standard Rolls Handle Many Shapes. Horizontal and Vertical Working Positions.
| Angle Roll Type | Hydraulic | Hydraulic |
| Shaft Ø | 2.36" | 59.944 mm |
| Motor Power | 2 + 1/2 HP | 2 + 1/2 HP |
| Driven Rolls | 3 | 3 |
| Rolling Speed, FPM | 13 | 13 |
| Roll Adjustment | Hydraulic | Hydraulic |
| Pipe Capacity | 3" Sch. 40, ø63" | 3" Sch. 40, ø63" |
| Round Tube Capacity | (SP) 4" x 14 ga., ø63" | (SP) 4" x 14 ga., ø63" |
| Square Tube Capacity | 2-3/4" x 2-3/4" x 1/8", ø63" | 2-3/4" x 2-3/4" x 1/8", ø63" |
| Rectangular Tube Capacity | 3-1/8" x 1-1/2" x 1/8", ø56" | 3-1/8" x 1-1/2" x 1/8", ø56" |
| Square Bar | 2", ø32" | 2", ø32" |
| Round Bar | (SP) 2", ø32" | (SP) 2", ø32" |
| Flat Bar Easy Way | 4-3/4" x 1", ø24" | 4-3/4" x 1", ø24" |
| Flat Bar Hard Way | 3-1/8" x 5/8", ø48" | 3-1/8" x 5/8", ø48" |
| Angle Iron Leg-In | 3" x 3" x 1/4", ø48" | 3" x 3" x 1/4", ø48" |
| Angle Iron Let-Out | 3" x 3" x 1/4", ø40" | 3" x 3" x 1/4", ø40" |
| T-Iron Leg-In | 3-1/8" x 3/8", ø48" | 3-1/8" x 3/8", ø48" |
| T-Iron Leg-Out | 3-1/8" x 3/8", ø40" | 3-1/8" x 3/8", ø40" |
| Channel Leg-In | 4", ø48" | 4", ø48" |
| Channel Leg-Out | 4", ø32" | 4", ø32" |
| Upper Roll Dia. | 8.46" | 214.88 mm |
| Lower Roll Dia. | 8.46" | 214.88 mm |
| Style | Pyramid | Pyramid |
| Working Plane | Horizontal/Vertical | Horizontal/Vertical |
| Dimensions | 40 x 56 x 65 in. | 40 x 56 x 65 in. |
| Weight | 2,090 lbs. | 2,090 lbs. |
*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
*Electronic Digital Readout (LED)
*Pipe/Tube/Shape Bending Rolls
*Leg in Guide Rolls
*NC Control
