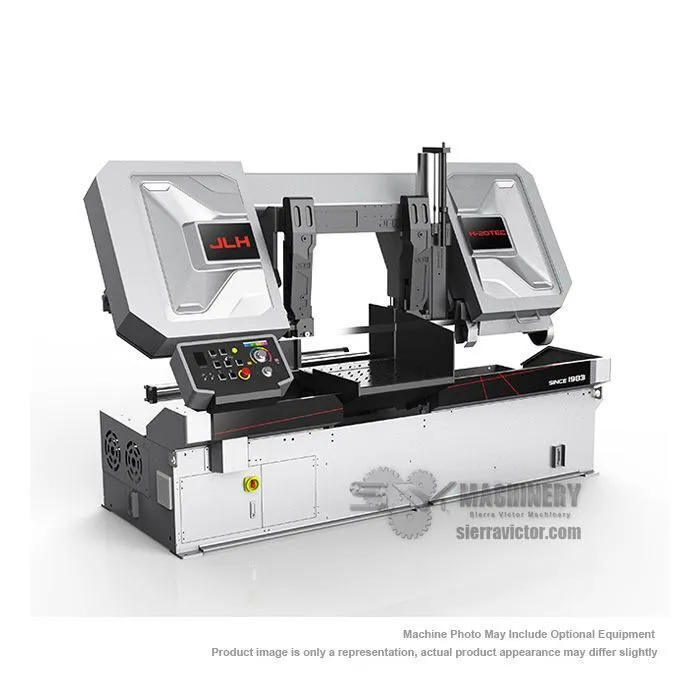

NEW JLH H-20TEC

Florida, United States
3,886Listings|10Followers
Overview
Horizontal Band Saws

JLH Saws H-20TEC is a 20 inch Semi-Automatic Bandsaw.Drive motor is inverter controlled.JLH Saws Control provides latest in PLC based control technology.

Specs
Cutting Capacity Round
20.9 in.
20.9 in.
Cutting Capacity Square
20.9 x 20.9 in.
20.9 x 20.9 in.
Blade Size
248.0 x 2.1 x 0.06 in.
248.0 x 2.1 x 0.06 in.
Blade Speed
65.6-262.5 fpm
65.6-262.5 fpm
Blade Motor
10 HP
10 HP
Voltage - Imax (A) 480V/60Hz
12.5
12.5
Voltage - Imax (A) 220V/60Hz
27
27
Hydraulic Motor
0.94 HP
0.94 HP
Hydraulic Oil Tank Capacity
8.7 gal
32.9 L
Coolant Motor
0.18 HP
0.18 HP
Cutting Oil Tank Capacity
25.2 gal
95.4 L
Bed/Table Height
30.34"
770.64 mm
Dimensions
117 x 61 x 78.7 in.
117 x 61 x 78.7 in.
Weight
5,070 lbs.
5,070 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
