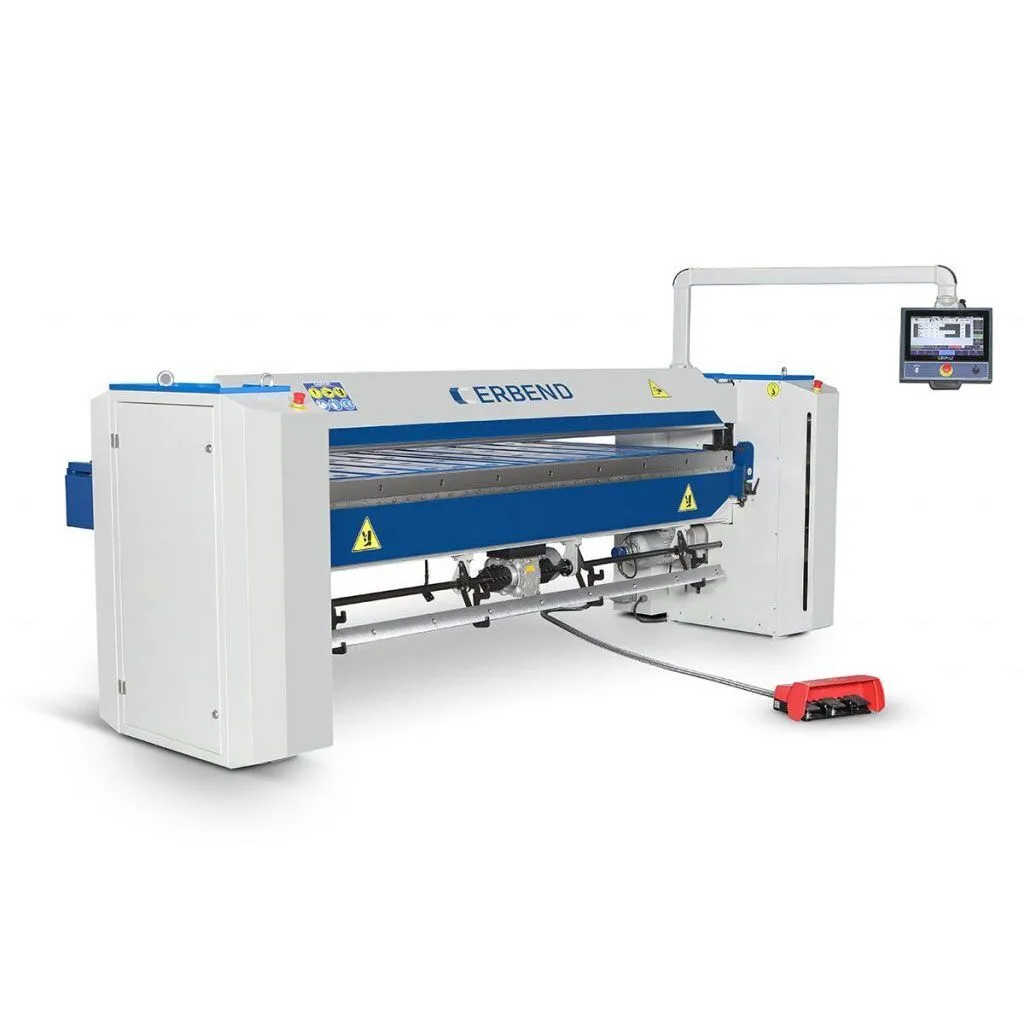

The ERBEND MFG 2515 is a CNC Motorized Sheet Metal Folding Machine that has a sheet length of 8 ft and steel capacity of 16 gauge.750 mm servo backgauge with feather fingers.Erfold basic cnc LBL software on 15 inch touchscreen controller.
| Max Sheet Length | 100" | 2,540 mm |
| Max Sheet Length | 8' | 2.4 m |
| Mild Sheet | 0.059" | 1.4986 mm |
| Stainless | 0.039" | 0.9906 mm |
| Aluminum | 0.078" | 1.9812 mm |
| Upper Beam (Z axis) - Opening height (without tools) | 4.33 in. | 4.33 in. |
| Combi/Upper Beam (Z axis): Motor Power (Servo) | 0,75 kW | 0,75 kW |
| Upper Beam (Z axis) - Transmission system | Eccentric | Eccentric |
| Upper Beam (Z axis) - Clamping speed | 3.54 in./sec | 3.54 in./sec |
| Folding Beam (Y axis) - Folding angle | 0 - 155° | 0 - 155° |
| Folding Beam (Y axis) - Motor Power (AC) | 1,1 kW | 1,1 kW |
| Folding Beam (Y axis) - Folding Speed | 100°/sec | 100°/sec |
| Folding Beam Height Adjustment (A1-A2 axis) - Adjustment height | 0 / -.78 in. | 0 / -.78 in. |
| Folding Beam Height Adjustment (A1-A2 axis) - Control | Manual | Manual |
| Back gauge system (X axis) - Movement speed | 11.81 in./sec | 11.81 in./sec |
| Back gauge system (X axis) - Motor Power (Servo) | 400 W | 400 W |
| Back gauge system (X axis) - Positioning / repeatability accuracy | +/- 0,1 mm | +/- 0,1 mm |
| Weight | 5,512 lbs. | 5,512 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional items - Call for price:
39.37 in. servo backgauge system with feather fingers
Different radius sharpnose tool
Erfold Advanced 2D cnc graphical software
DIFFERENT NOSE RADIUS SHARPNOSE TOOL
Possible nose radius: R1,5 – R2 – R3 – R5 – R10
39.37 INCH SERVO BACKGAUGE AND SHEET SUPPORT TABLE EXTENSION
ERFOLD ADVANCED 2D CNC GRAPHICAL CONTROL SOFTWARE
Windows based software specifically designed for folders and %100 owned by Erbend
15.6" capacitive LED touchscreen controller on swivel arm
LBL Editor: You can adjust the bending steps line by line by entering the numeric values of axis targets or measures.
2D part editor: you can create a new bending programme by drawing in graphic mode and visualize in 2D graphical screen
You can determine and change the bending sequence on the created part while you are making graphical collision control
Capability of choosing material type,thickness,springback,bending correction and creating data base for every type of material type,thickness and length
Authorization with password
128 GB hard disk space which allows you to save unlimited data
Detailed alarm,tooling and parameters page
