NEW VICTOR S26120S

Florida, United States
3,831Listings|9Followers
Overview
Engine Lathes

Large 4-1/8" spindle bore and 15 HP main motor high precision heavy-duty lathe designed to turn heavy parts smoothly and efficiently. The quality built construction ensures maximum durability, rigidity, and unsurpassed reliability.

Specs
Lathe Type
Precision
Precision
Swing Over Bed
26"
660.4 mm
Distance Between Centers
120"
3,048 mm
Spindle Bore
4.13"
104.9 mm
Spindle Nose
D1-11
D1-11
Number Of Spindle Speeds
12 Steps
12 Steps
Range Of Speeds
15 ~ 1,200 rpm
15 ~ 1,200 rpm
Number of Inch Threads
2 ~ 112 TPI x 60 kinds
2 ~ 112 TPI x 60 kinds
Motor
15 hp
11.2 kW
Phase
3
3
Dimensions
185” x 45” x 67”
185” x 45” x 67”
Weight
7,458 lbs.
7,458 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

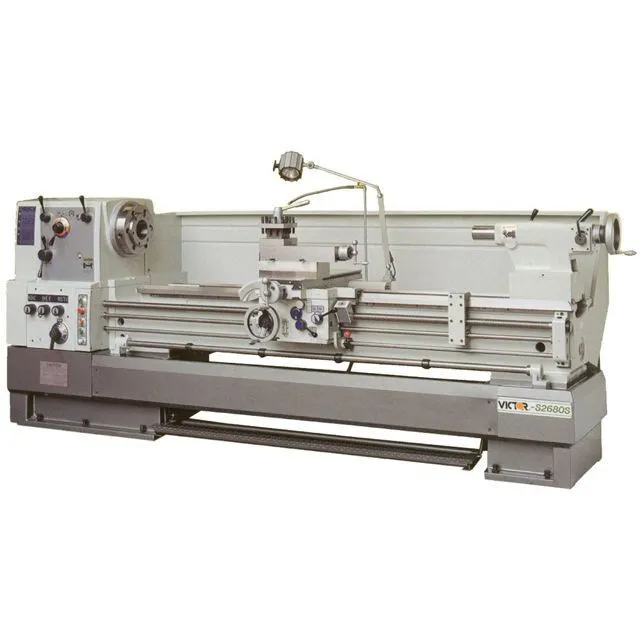

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:
Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover with limit switch
Full length splash guard for S2240S, S2260S and S2280S only
On-carriage splash guard for S22100S and S22120S only
