NEW KALAMAZOO INDUSTRIES KS390HV-5
Overview
Description
Introducing the KS390HV-5, a 3x90 in. horizontal belt grinder with vacuum. Perfect for precise grinding tasks, it features optional accessories like contact wheels and idler spindles. Manufactured by KALAMAZOO INDUSTRIES, this new model ensures top performance.
Specifications
| Belt Width | 3" | 76.2 mm |
|---|---|---|
| Belt Length | 90" | 2,286 mm |
| Belt Speed | 6900 SFPM | 6900 SFPM |
| Platen | 24-1/2 in. (Steel) | 24-1/2 in. (Steel) |
| Switch Type | Grinder: Magnetic on/off switch | Vacuum: Rotary on/off switch | Grinder: Magnetic on/off switch | Vacuum: Rotary on/off switch |
| Vacuum System | 400 ft³/min. | 11,326,728 cm³/min. |
| Motor Power | 5 hp | 3.7 kW |
| Phase | 3-phase | 3-phase |
| Voltage | 220V or 440V (specify) | 220V or 440V (specify) |
| Amps | Grinder: 230V 11.8 amps, 460V 5.9 amps | Vacuum: 230V 2.8 amps, 460V 1.4 amps. | Grinder: 230V 11.8 amps, 460V 5.9 amps | Vacuum: 230V 2.8 amps, 460V 1.4 amps. |
| Shipping Dimensions | L 39 x W 59 x H 54 in. | L 39 x W 59 x H 54 in. |
| Shipping Weight | 500 lb | 226.8 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

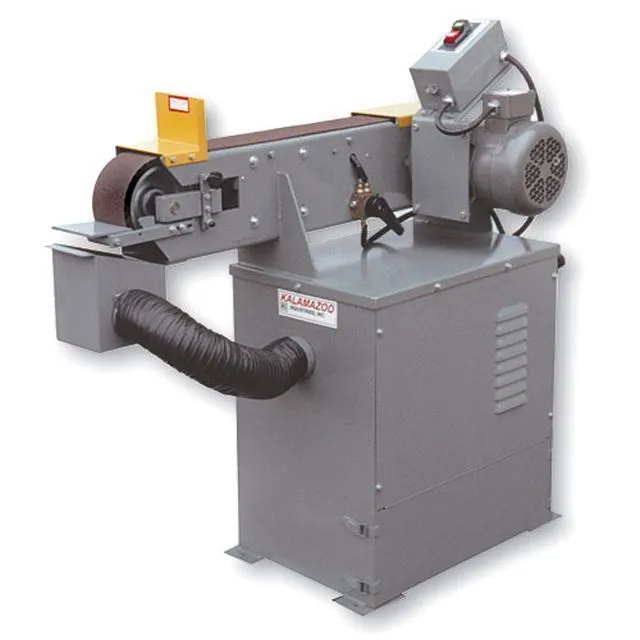

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
OPTIONAL ITEMS - CALL FOR PRICE:
936-009 3" x 90" contact wheel.
701-032 idler spindle.
563-009 replaceable and reversible steel platen
KB39050 3" x 90" 50 grit belt (minimum order of 10 belts)
KB39080 3" x 90" 80 grit belt (minimum order of 10 belts)
KB390100 3" x 90" 100 grit belt (minimum order of 10 belts
