Large 4-1/8" spindle bore and 15 HP main motor high precision heavy-duty lathe designed to turn heavy parts smoothly and efficiently. The quality built construction ensures maximum durability, rigidity, and unsurpassed reliability.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 22" | 558.8 mm |
| Distance Between Centers | 80" | 2,032 mm |
| Spindle Bore | 4.13" | 104.9 mm |
| Spindle Nose | D1-11 | D1-11 |
| Number Of Spindle Speeds | 12 Steps | 12 Steps |
| Range Of Speeds | 15 ~ 1,200 rpm | 15 ~ 1,200 rpm |
| Number of Inch Threads | 2 ~ 112 TPI x 60 kinds | 2 ~ 112 TPI x 60 kinds |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Dimensions | 140” x 45” x 67” | 140” x 45” x 67” |
| Weight | 6,160 lbs. | 6,160 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

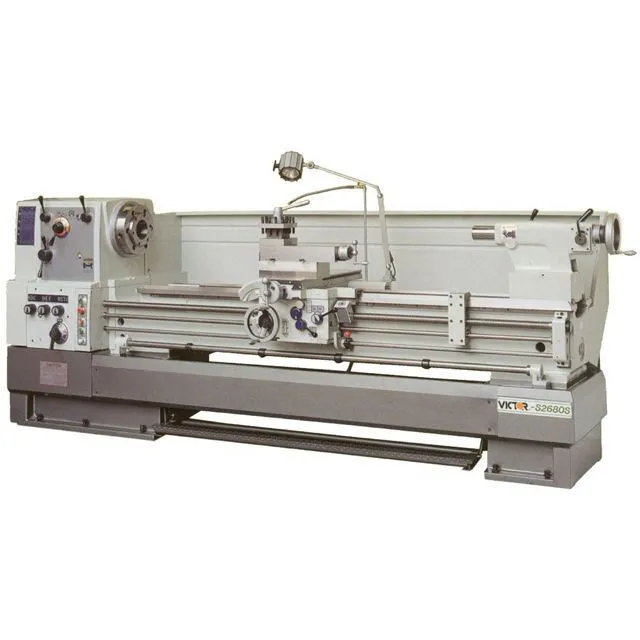

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover with limit switch
Full length splash guard for S2240S, S2260S and S2280S only
On-carriage splash guard for S22100S and S22120S only
