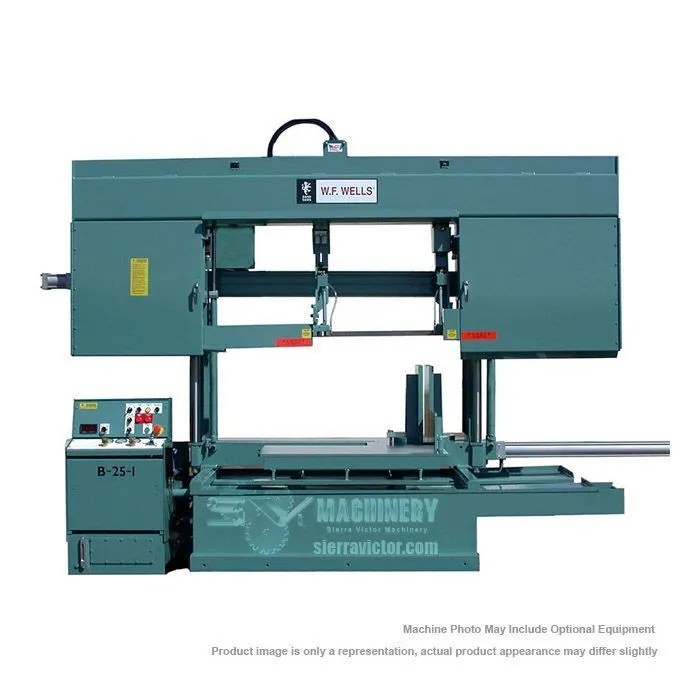

The W.F. WELLS B-25-1 Semi-Automatic Twin Post Band Saw is made in the USA and has a Hydraulic Vise with a 45° Swivel. It has TEFC motors and a Built-In Coolant System.
| Round at 90° | 25.5" | 647.7 mm |
| Rectangle at 90° | 25 High x 40 Wide in. | 25 High x 40 Wide in. |
| Round at 45° | 24" | 609.6 mm |
| Rectangle at 45° | 25 High x 24 Wide in. | 25 High x 24 Wide in. |
| Blade Size | 1-1/4” x .042” x 22’6” | 1-1/4” x .042” x 22’6” |
| Blade Guide | Carbide Blocks with Roller Back-up | Carbide Blocks with Roller Back-up |
| Blade Tension | Hydraulic | Hydraulic |
| Sawing Force | 0-750 lbs. | 0-750 lbs. |
| Blade Speed | 60-500 sfpm | 60-500 sfpm |
| Blade Motor | 7-1/2 HP, AC Vector Drive | 7-1/2 HP, AC Vector Drive |
| Power | 208v-60-3Ph ** + | 208v-60-3Ph ** + |
| Hydraulic Motor | 2 HP | 2 HP |
| Hydraulic Oil Tank Capacity | 20 gal | 75.7 L |
| Coolant Tank Capacity | 15 gal | 56.8 L |
| Weight Capacity | 15,000 lb | 6,803.9 kg |
| Bandwheel Size | 26" | 660.4 mm |
| Work Height | 28" | 711.2 mm |
| Vise | Hydraulic | Hydraulic |
| Outfeed Table | 24 x 40 in. | 24 x 40 in. |
| Shipping Dimensions | 55 L x 156 W x 98 H in. | 55 L x 156 W x 98 H in. |
| Shipping Weight | 5,800 lb | 2,630.8 kg |
| Dimensions | 161 L x 52 W x 100 H in. | 161 L x 52 W x 100 H in. |
+ Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010606: 208v-60-3ph
Order Number - 0010607: 230v-60-3ph
Order Number - 0010608: 460v-60-3ph
Order Number - 0010609: 575v-60-3ph
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
0056046: Discharge Worktable 40" W x 56" L with Stock Stop
0056064: Hydraulic Holddown, Saw Vise
0056069: Hydraulic Chip Conveyor
0052707: Blade Break/Stall Switch
0056198: Non-Powered Conveyor, 40" x 5'
0056199: Non-Powered Conveyor, 40" x 10'
0056200: Hydraulic Powered Conveyor, 40" x 10'
High Speed Drive & Guides (1-1/4" Blade) 500-3000 SFPM
