19” wide bedways with heavy overall machine weights.Heavy duty clutched headstock with set of SKF spindle bearings, and hardened and ground gears.4” spindle bore with D1-11 camlock spindle nose
| Lathe Type | Engine | Engine |
| Swing Over Bed | 25" | 635 mm |
| Distance Between Centers | 157" | 3,987.8 mm |
| Spindle Bore | 4.125" | 104.77 mm |
| Spindle Nose | D1-11 | D1-11 |
| Motor | 17.5 hp | 13 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Dimensions | 222 x 57 x 61 in. | 222 x 57 x 61 in. |
| Weight | 12,000 lbs. | 12,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

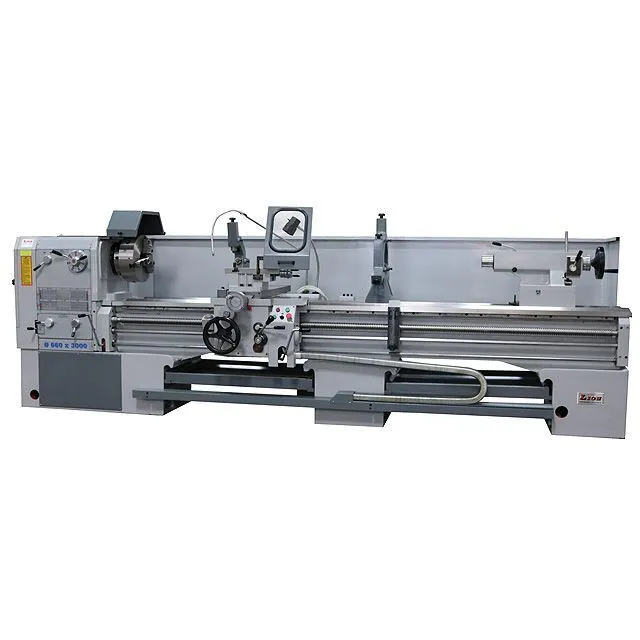

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
