NEW FINISH PRO FP-2560

Florida, United States
Asking Price
USD $19,850.00
1 available
3,965Listings|11Followers
Overview
Wide Belt Sanders

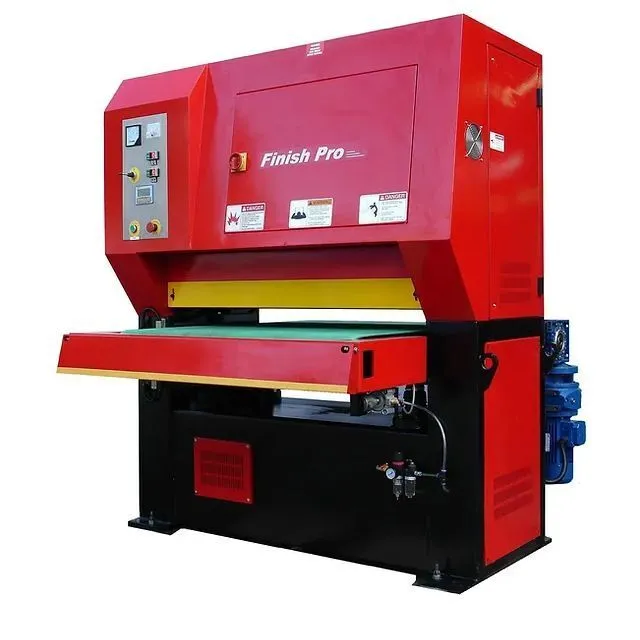

The GMC Machine Tools Finish Pro 25” x 60” Metal Wide Belt Sander is great for deburring and finishing parts in the production and manufacturing industries. GMC's Finish Pro metal wide belt sanders are robust, durable, and accurate. Equipped with a digital readout. The main motor is 10HP, 230V, 3PH.

Specs
Width of Belt
25"
635 mm
Length of Belt
60"
1,524 mm
Max Part Width
24"
609.6 mm
Minimum Part Length
8"
203.2 mm
Motor Power
10 hp
7.5 kW
Phase
3-Phase
3-Phase
Voltage
230V
230V
Amperage draw
45A on 220V
45A on 220V

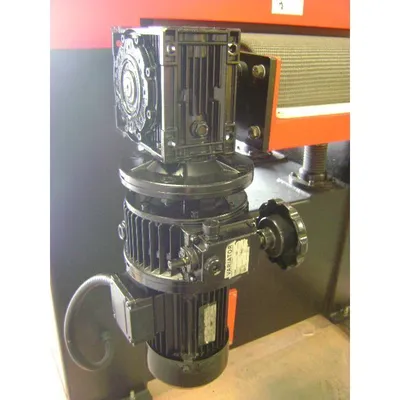

Table Lifting Motor
1 HP, 230V, 3-Phase
1 HP, 230V, 3-Phase

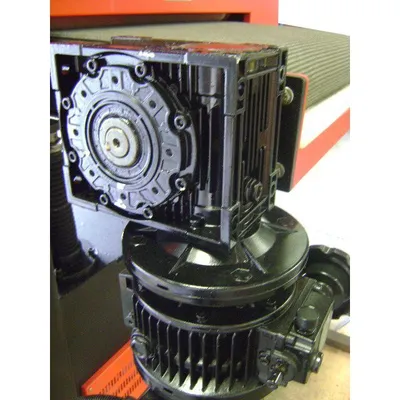

Conveyor Motor
1 HP, 230V, 3-Phase
1 HP, 230V, 3-Phase
Conveyor Speed
8-40 FPM
8-40 FPM
Infeed Conveyor Length
20"
508 mm
Max. Thickness Capacity
6.125"
155.57 mm

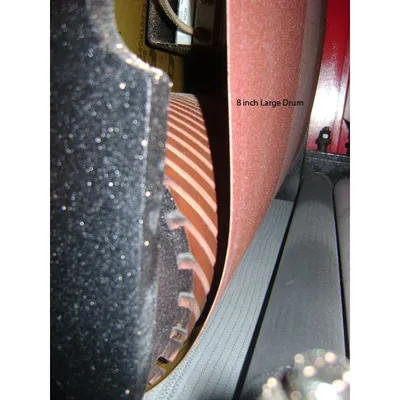

Contact Roller Size (dia.)
8"
203.2 mm
Passline Height
31-37 in.
31-37 in.
Max. Workpiece Weight
375 lb
170.1 kg
Dust Collector Capacity (cfm)
1,100 ft³/min.
31,148,501.9 cm³/min.
Net Weight
2,950 lb
1,338.1 kg
Shipping Dimensions
68 x 52 x 78 in.
68 x 52 x 78 in.
Dimensions
55 x 63 x 69 in.
55 x 63 x 69 in.

* Min. workpiece length - Min 8 in., need a fixture for smaller parts

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS

*Model WDC-FP40 Wet Dust Collector # WDC-FP40, 5 HP, 2,100CFM......... $ 10,950.00
( it is demo wet collector, all stainless steel )
*Heavy Duty Ducting Package # HDDP-2560...................................... $ 1,290.00
