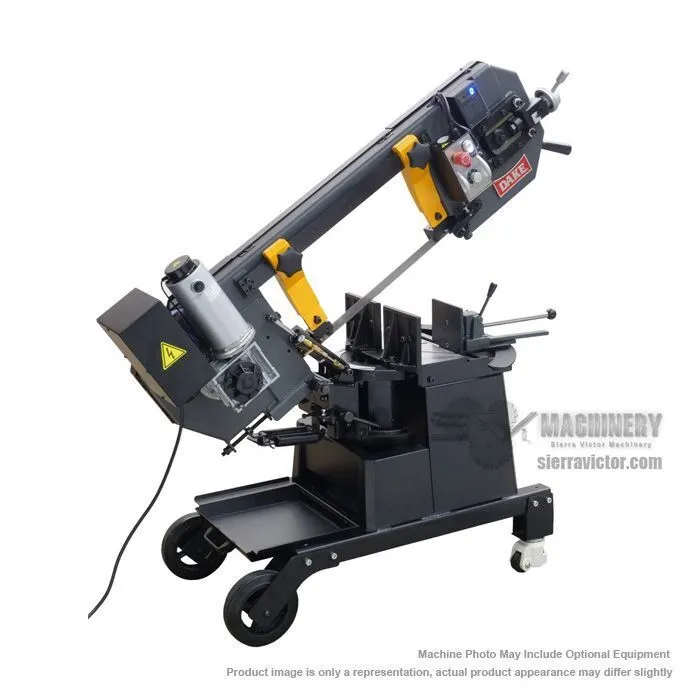

DAKE's SE-810 semi-automatic down feed dual mitering horizontal bandsaw will be equipped with a beltless direct drive DC motor, electronic variable speed controls, digital tachometer, and four casters for easy mobility! 110V 1HP DC Direct Drive Motor. Variable Speed dial – 65 – 250 FPM’s
| Solid Round at 90° | 10" | 254 mm |
| Solid Square at 90° | 8 x 10 in. (R) | 8 x 10 in. (R) |
| Solid Round at 45° | 6" | 152.4 mm |
| Solid Square at 45° | 8 x 6 in. (R) | 8 x 6 in. (R) |
| Blade Size | 9'10" L x 1 W in. | 9'10" L x 1 W in. |
| Blade Length | 118" | 2,997.2 mm |
| Blade Speed | Variable 65 ~ 250 fpm | Variable 65 ~ 250 fpm |
| Blade Motor | 1.25 HP, 900W 5A 110V 1HP DC DIRECT DRIVE | 1.25 HP, 900W 5A 110V 1HP DC DIRECT DRIVE |
| Power | 110v | 110v |
| Bed/Table Height | 27" | 685.8 mm |
| Dimensions | 60 x 24 x 50 in. | 60 x 24 x 50 in. |
| Weight | 560 lbs. | 560 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
303801: Blade - 9' 10" x 1" x .035", 10/14 VP, 118 long
303802: Blade - 9' 10" X 1" X .035", 6/8 VP, 118" long
77178: Mist System
