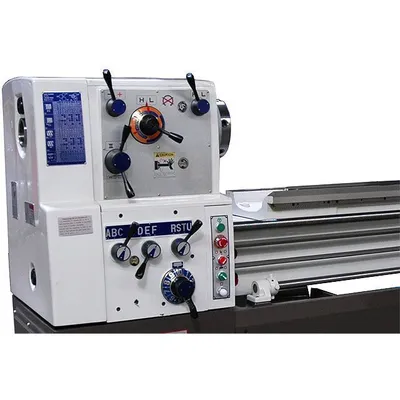

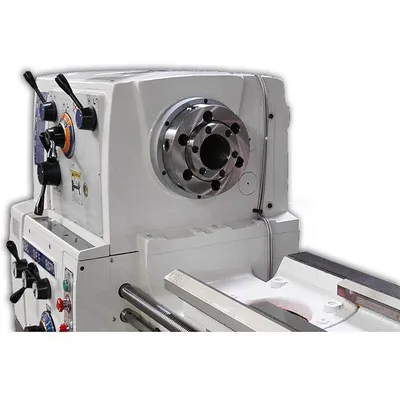

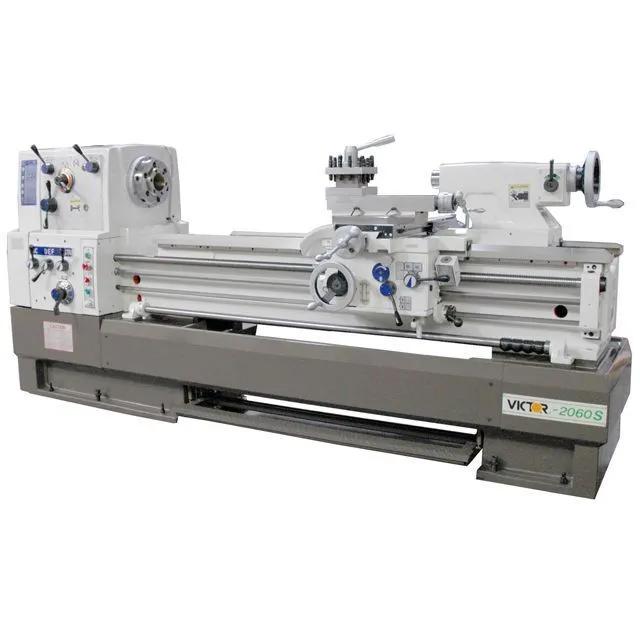

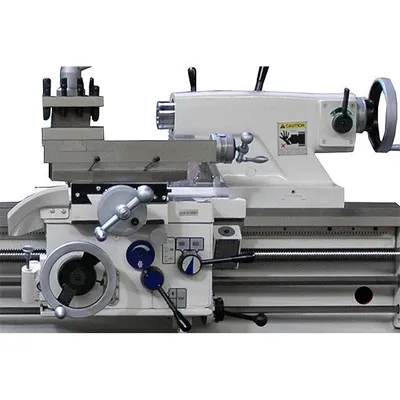

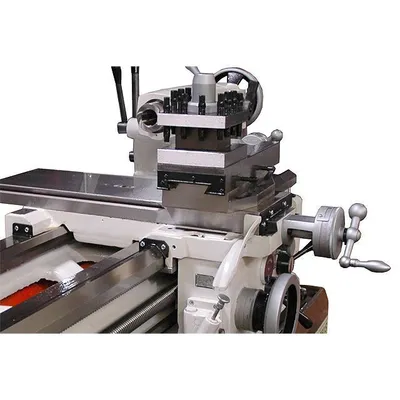

NEW VICTOR 2080S

Florida, United States
3,882Listings|10Followers
Overview
Engine Lathes

Extra large rigid compound rest and Meehanite casting bed provide excellent stability and consistency during machining. Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.

Specs
Lathe Type
Precision
Precision
Swing Over Bed
20"
508 mm
Distance Between Centers
80"
2,032 mm
Spindle Bore
3.13"
79.502 mm
Spindle Nose
D1-8
D1-8
Number Of Spindle Speeds
12 Steps
12 Steps
Range Of Speeds
20 ~ 1,550 rpm
20 ~ 1,550 rpm
Number of Inch Threads
2 ~ 112 TPI x 60 kinds
2 ~ 112 TPI x 60 kinds
Motor
10 hp
7.5 kW
Phase
3
3
Dimensions
140” x 44” x 65”
140” x 44” x 65”
Weight
5,870 lbs.
5,870 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:
10" 3-jaw chuck
16" 4-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Halogen work light
Full length splash guard for 2040S, 2060S and 2080S only
On-carriage splash guard for 20120S and 20160S only
