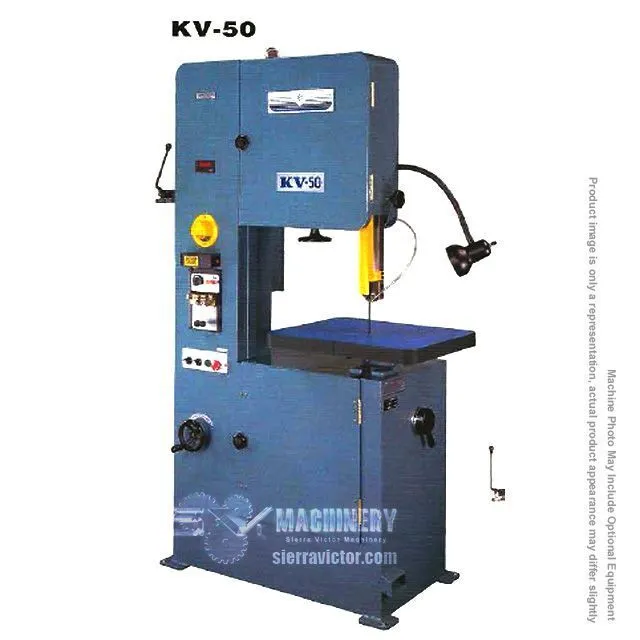

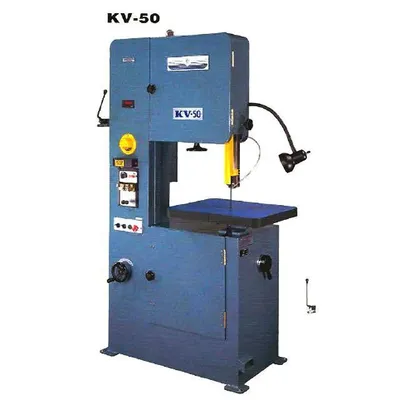

The BIRMINGHAM KV-50 Vertical Metal Cutting Band Saw has a saw blade butt welder with integrated annealing unit and a brush for cleaning lower drive wheel. It also has a low voltage working lamp.
| Throat Depth | 20.5" | 520.7 mm |
| Max. Work Height | 12.375" | 314.32 mm |
| Blade Length | 153 in. | 153 in. |
| Blade Width | 3-16mm | 3-16mm |
| Blade Speeds - Low Range | 20-85m/min (65-280 fpm) | 20-85m/min (65-280 fpm) |
| Blade Speeds - High Range | 120-500m/min (400-1640 fpm) | 120-500m/min (400-1640 fpm) |
| Table Size | 23-1/2 x 19-1/2 in. | 23-1/2 x 19-1/2 in. |
| Table inclination (4 ways) | 15° | 15° |
| Butt Welder Capacity | 1/8 to 5/8 in. (2.4KVA, 3-16mm) | 1/8 to 5/8 in. (2.4KVA, 3-16mm) |
| Motor | 2 HP | 2 HP |
| Power | 220v, 3-phase | 220v, 3-phase |
| Net Weight | 959 lb | 435 kg |
| Gross Weight | 1,124 lb | 509.8 kg |
| Dimensions | 52 x 30 x 85 in. | 52 x 30 x 85 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEARS - Parts
Optional items - Call for price:
* Rip fence for straight, repeated cuttings easily removable for varied size
* Miter protractor for angular cutting
* Groove table
