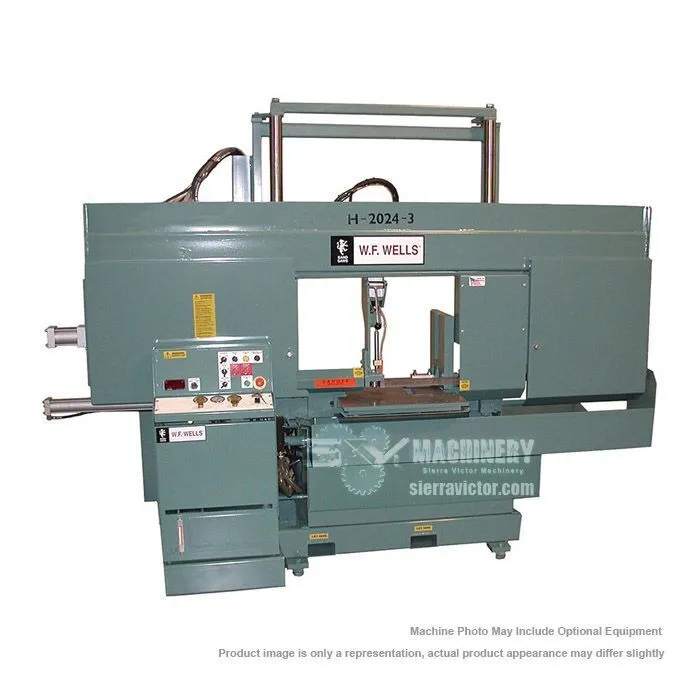

The W.F. WELLS H-2024-3 Horizontal Cut Off Bandsaw has a 10 HP AC Vector Blade Drive and is made in the USA. This saw is Semi-Automatic Operation and has a Built-In Coolant System.
| Round at 90° | 20" | 508 mm |
| Rectangle at 90° | 20 H x 24 W in. | 20 H x 24 W in. |
| Blade Size | 1-1/2” x .050” x 20’ 0” | 1-1/2” x .050” x 20’ 0” |
| Blade Guide | Rollers and Carbide Side Blocks | Rollers and Carbide Side Blocks |
| Blade Tension | Hydraulic | Hydraulic |
| Sawing Force | 0-750 lbs. | 0-750 lbs. |
| Blade Speed | 60-500 sfpm | 60-500 sfpm |
| Blade Motor | 10 HP, AC Vector | 10 HP, AC Vector |
| Power | 208v-60-3ph + ** | 208v-60-3ph + ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Hydraulic Oil Tank Capacity | 20 gal | 75.7 L |
| Coolant Tank Capacity | 15 gal | 56.8 L |
| Weight Capacity | 5,000 lb | 2,268 kg |
| Bandwheel Size | 22" | 558.8 mm |
| Work Height | 35" | 889 mm |
| Vise | Full Stroke Hydraulic, 15 in. | Full Stroke Hydraulic, 15 in. |
| Shipping Dimensions | 103 L x 50 W x 93 H in. | 103 L x 50 W x 93 H in. |
| Shipping Weight | 3,900 lb | 1,769 kg |
| Dimensions | 127 L x 51 W x 92 H in. | 127 L x 51 W x 92 H in. |
+ Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010830: 208v-60-3ph
Order Number - 0010831: 230v-60-3ph
Order Number - 0010832: 460v-60-3ph
Order Number - 0010833: 575v-60-3ph
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
0052410: Hydraulic Holddown, Manual
0056707: Automatic Length Stop Assembly
0053201: Discharge Worktable, 20” W x 48” L with Stock Stop
0056045: Discharge Worktable, 24” W x 48” L with Stock Stop
0052021: Work Light, Wired In
0056040: Blade Break/Stall Switch
0056036: Hydraulic Chip Conveyor, Auger Style
0051045: High Speed Drive & Guides (1-1/4” Blade) 400-3,000 SFPM
Free Standing Roller Stock Conveyors, 6” Centers
0050252: 21” x 5' x 5,000 lbs Cap. Distributed Weight
0050251: 21” x 10' x 10,000 lbs Cap. Distributed Weight
0056262: 24” x 5’ x 5,000 lbs Cap. Distributed Weight
0056263: 24” x 10’ x 10,000 lbs Cap. Distributed Weight
0056202: 21" x 10' Powered Conveyor, Hydraulic
24” Powered Conveyor
