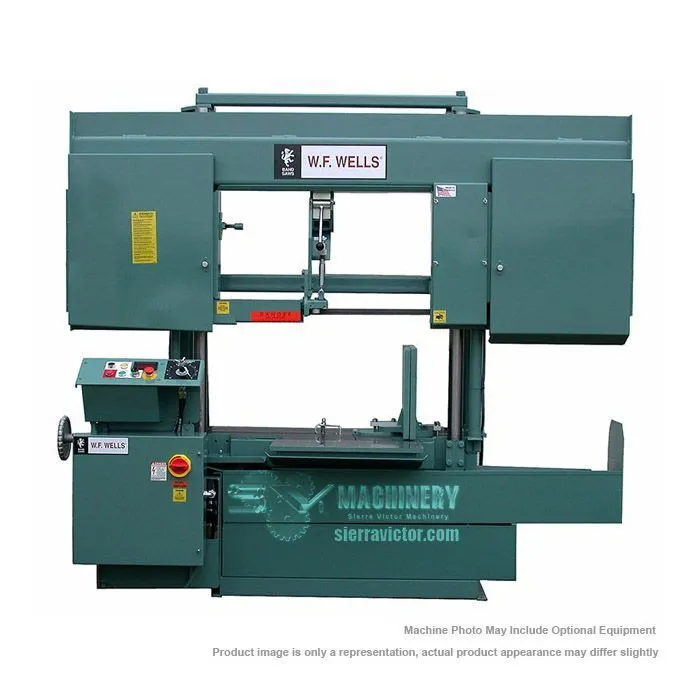

The W.F. WELLS H-2024-1 Horizontal Cut Off Bandsaw has Semi-Automatic Operation and is made in the USA. It has a 1-1/4” Bi-Metal Blade and Rollers and Carbide Side Blocks. This saw has a Built-In Coolant System and TEFC Motors.
| Round at 90° | 20" | 508 mm |
| Rectangle at 90° | 20 H x 24 W in. | 20 H x 24 W in. |
| Blade Size | 1-1/4” x .042” x 17’-8” | 1-1/4” x .042” x 17’-8” |
| Blade Guide | Rollers and Carbide Side Blocks | Rollers and Carbide Side Blocks |
| Blade Tension | Manual with Indicator | Manual with Indicator |
| Sawing Force | 30-120 lbs | 30-120 lbs |
| Blade Speed | 60-500 sfpm | 60-500 sfpm |
| Blade Motor | 7-1/2 HP, AC Vector Drive | 7-1/2 HP, AC Vector Drive |
| Power | 208v-60-3 ph + ** | 208v-60-3 ph + ** |
| Hydraulic Motor | 1/3 HP | 1/3 HP |
| Hydraulic Oil Tank Capacity | 0.8 gal | 2.8 L |
| Coolant Tank Capacity | 15 gal | 56.8 L |
| Weight Capacity | 5,000 lb | 2,268 kg |
| Bandwheel Size | 20" | 508 mm |
| Work Height | 26" | 660.4 mm |
| Vise | Manual, 15 in. | Manual, 15 in. |
| Shipping Dimensions | 101 L x 40 W x 86 H in. | 101 L x 40 W x 86 H in. |
| Shipping Weight | 2,800 lb | 1,270.1 kg |
+ Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010815: 208v-60-3ph
Order Number - 0010816: 230v-60-3ph
Order Number - 0010817: 460v-60-3ph
Order Number - 0010818: 575v-60-3ph
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
0056707: Automatic Length Stop Assembly
0056041: Discharge Worktable, 20” W x 48” L with Stock Stop
0056045: Discharge Worktable, 24” W x 48” L with Stock Stop
0052021: Work Light, Wired In
Air Vise, Manual
Air Holddown, Manual
0056040: Blade Break/Stall Switch
0056036: Electronic Chip Conveyor, Auger Style
0051045: High Speed Drive & Guides (1” Blade) 400-3,000 SFPM
Free Standing Roller Stock Conveyors, 6” Centers
0050247: 21”X 5' X 5,000 lbs Cap. Distributed Weight
0050250: 21” X 10' X 10,000 lbs Cap. Distributed Weight
0056262: 24” X 5’ X 5,000 lbs Cap. Distributed Weight
0056263: 24” X 10’ X 10,000 lbs Cap. Distributed Weight
0056202: Electronic Powered Conveyor 21” X 10'
24” Powered Conveyor
