Extra large rigid compound rest and Meehanite casting bed provide excellent stability and consistency during machining. Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 20" | 508 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 3.13" | 79.502 mm |
| Spindle Nose | D1-8 | D1-8 |
| Number Of Spindle Speeds | 12 Steps | 12 Steps |
| Range Of Speeds | 20 ~ 1,550 rpm | 20 ~ 1,550 rpm |
| Number of Inch Threads | 2 ~ 112 TPI x 60 kinds | 2 ~ 112 TPI x 60 kinds |
| Motor | 10 hp | 7.5 kW |
| Phase | 3 | 3 |
| Dimensions | 89” x 44” x 65” | 89” x 44” x 65” |
| Weight | 4,660 lbs. | 4,660 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

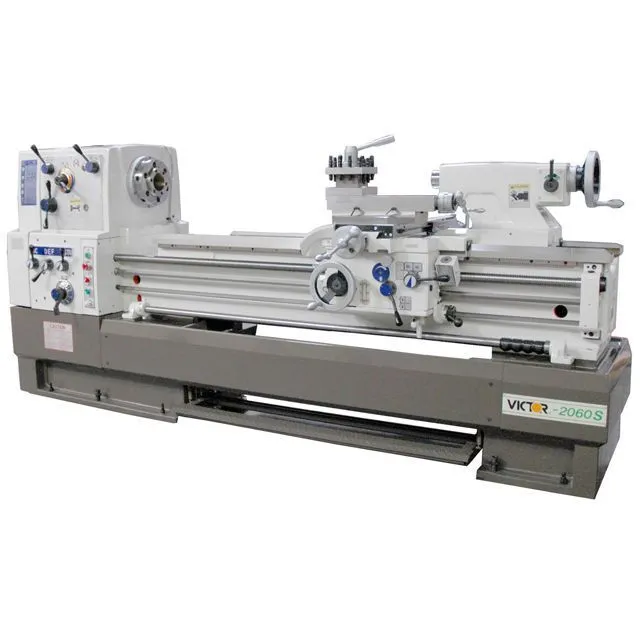

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
10" 3-jaw chuck
16" 4-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Halogen work light
Full length splash guard for 2040S, 2060S and 2080S only
On-carriage splash guard for 20120S and 20160S only
