NEW KALAMAZOO INDUSTRIES K20E
Overview
Description

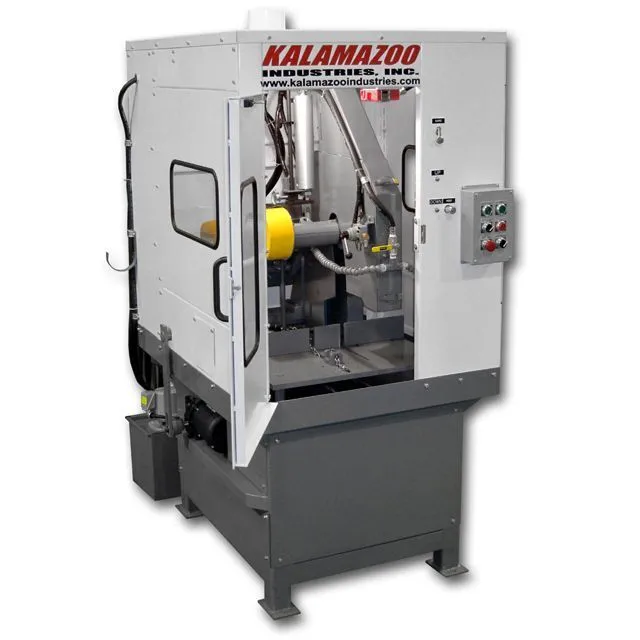

The Kalamazoo K20E-15 20 inch enclosed saw will cut metal samples. The machine features a powerful 15HP motor, a fully enclosed cabinet, power down feed system, oscillation, and a flood coolant system. Material Capacity is 4 in. solid, 6 in. shapes.
Specifications
| Capacity - Round Solid | 4" | 101.6 mm |
|---|---|---|
| Capacity - Shapes | 6" | 152.4 mm |
| Abrasive Wheel Size | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| Phase | 3-Phase | 3-Phase |
| Voltage | 230V or 460V (specify) | 230V or 460V (specify) |
| Spindle Arbor | 1 in. | 1 in. |
| Air/oil power down feed (fpm) | 0-12 FPM feed rate | 0-12 FPM feed rate |
| Spindle Speed | 1950 RPM | 1950 RPM |
| Coolant System | Flood coolant system. Includes industrial 1/3HP pump | Flood coolant system. Includes industrial 1/3HP pump |
| Coolant Tank Size | 10 gal | 37.9 L |
| Dimensions | D 50 x W 54 x H 89 in. | D 50 x W 54 x H 89 in. |
| Weight | 1,900 lbs. | 1,900 lbs. |
*1.25 arbor available
**20 HP, 3ph Available
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
OPTIONAL ITEMS - CALL FOR PRICE:
710-052: door safety interlock system (keeps the operator out of the machine while in operation. Once the saw blade stops rotating, the operator can open the saw door.
TS-20: t-slot table
AV-20: air-operated jaw vise
