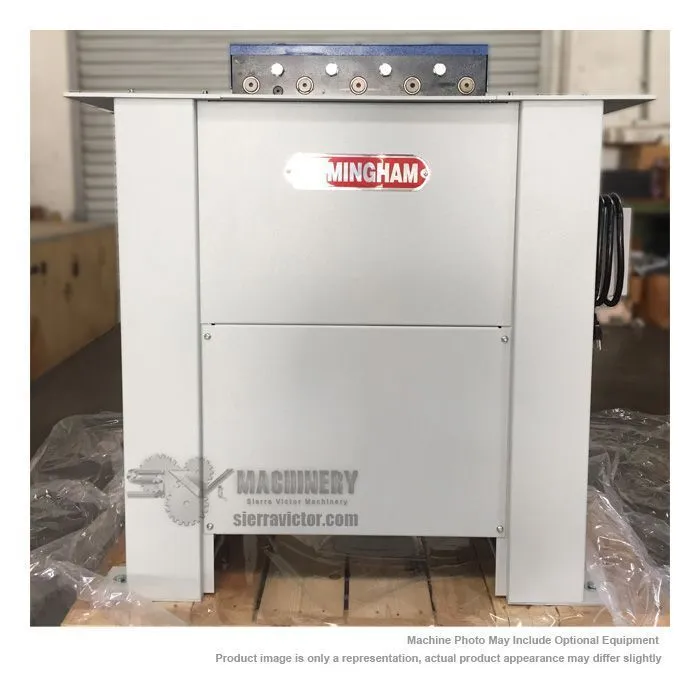

The BIRMINGHAM Lock Forming Machine L-20 has hardened and ground shafts and case hardening steel forming rolls. Machine cut gear and needle type roller bearing throughout.
| Capacity | 20 to 26 Ga. Use approximately 1" of material | 20 to 26 Ga. Use approximately 1" of material |
| Depth of Pocket | 5/16" width of hammer-over edge adjustable up to 3/8" | 5/16" width of hammer-over edge adjustable up to 3/8" |
| Power | 1 hp | 0.7 kW |
| Electical | 110v, 1-Phase | 110v, 1-Phase |
| Feeding Speed | 25 feed per minute | 25 feed per minute |
| Drive | V-belt | V-belt |
| Stand | ARC welded steel. Heavy top plate. | ARC welded steel. Heavy top plate. |
| Dimensions | 36 x 16.5 x 36.5 in. | 36 x 16.5 x 36.5 in. |
| Weight | 320 lbs. | 320 lbs. |
*Prices Valid on In Stock Machines Only
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
