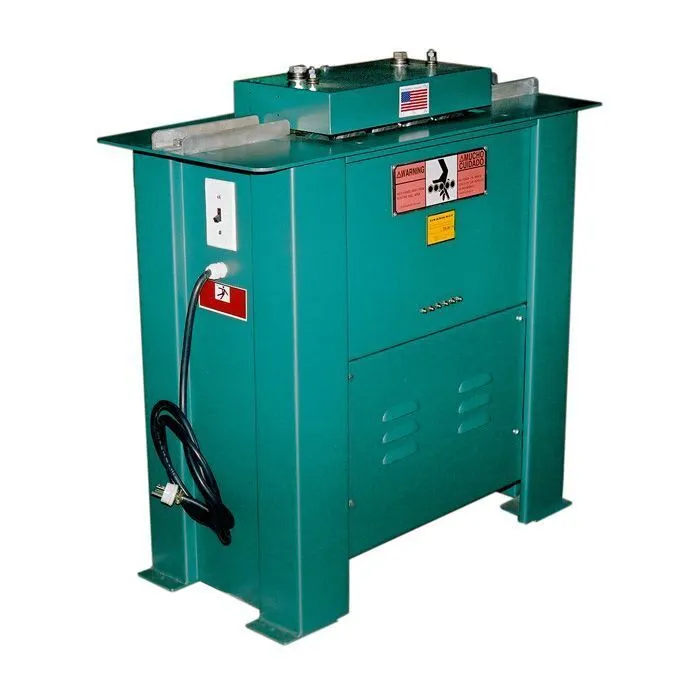

The TIN KNOCKER TK20 Pittsburgh Roll Former has a 20 gauge capacity and comes with Acme Rolls and 20 gauge Flanger.20 ga. Flanging Attachment included in price.5 station 20 Gauge Pittsburgh lock rollformer is offered with Acme rolls on the other outboard side.This is a 1-phase machine Powered by a 1 HP motor with V-belt drive.
| Capacity | 20 Gauge to 26 Gauge Mild Steel | 20 Gauge to 26 Gauge Mild Steel |
| Depth of Pocket | 5/16" (7.9mm) | 5/16" (7.9mm) |
| Power | 1 hp | 0.7 kW |
| Electical | 115/230v, 1800 RPM | 115/230v, 1800 RPM |
| Feeding Speed | Approx. 25 FPM | Approx. 25 FPM |
| Dimensions | 40"L x 24"W x 44"H | 40"L x 24"W x 44"H |
| Weight | 360 lbs. (136kg) | 360 lbs. (136kg) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
* Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150
Optional Items - Call for Price:
TK 20 - 20 gauge Flanging Attachment
TK 24 - 24 gauge Flanging Attachment
