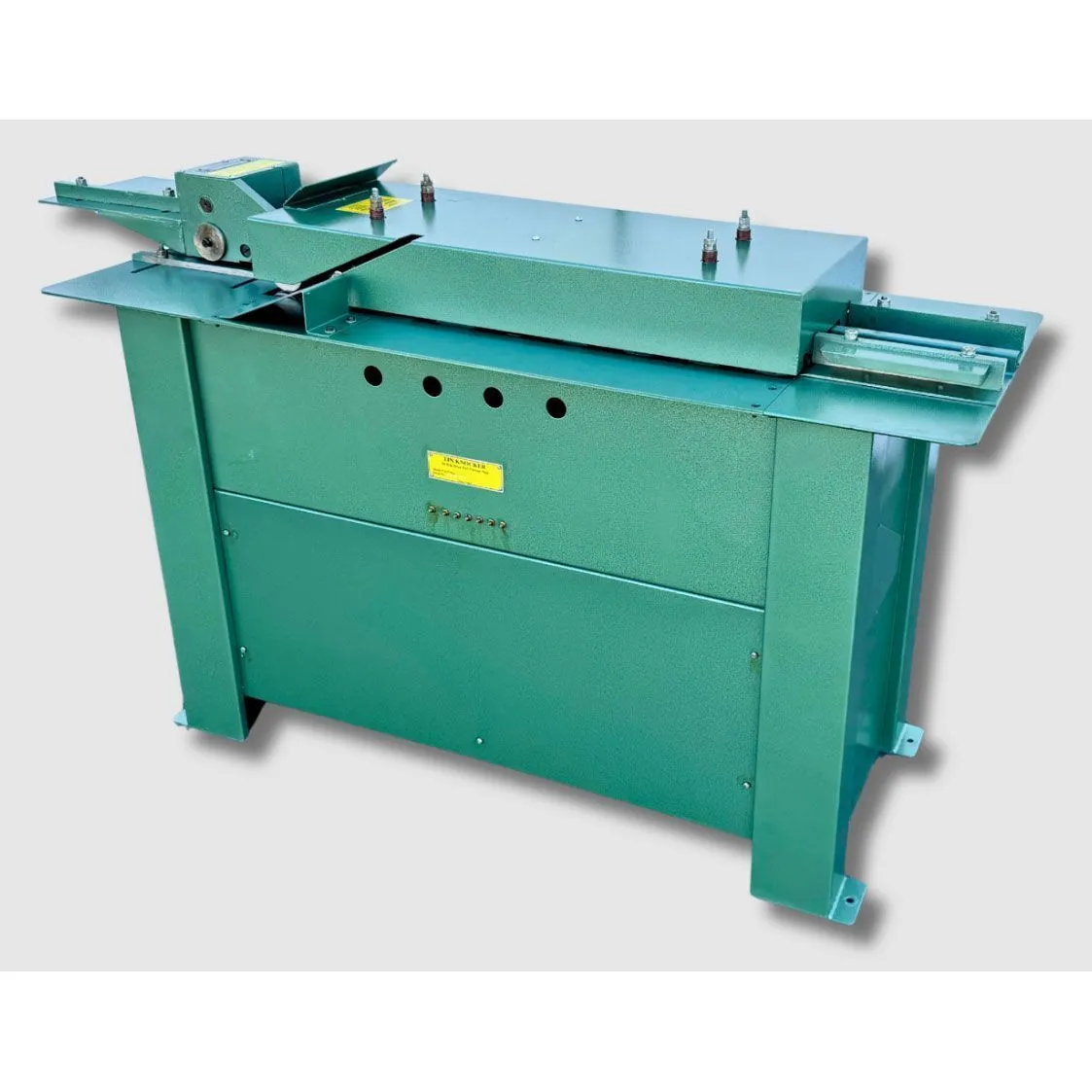

TIN KNOCKER Roll/Cleat Former TK S & Drive Plus has a capacity of 20 gauge.Versatile, Turns scrap metal into usable drives and When fitted with auxiliary rolls, the payback is even faster.S & Drive Slitter to cut blanks and make cleats in one pass and S Cleat rolls down center.Drive Cleat rolls outboard on one side and 20 Ga Pittsburgh outboard opposite of Drive Cleat.
| Capacity - Pittsburgh Lock | 20-28 Ga | 20-28 Ga |
| Capacity - Width of S-Cleat | 1-1/16 in. | 1-1/16 in. |
| Capacity - Width of Drive Cleat | 1-1/8 in. | 1-1/8 in. |
| Capacity - Drive Cleats | 20-26 Ga | 20-26 Ga |
| Capacity - S Cleats | 22-28 Ga | 22-28 Ga |
| Power | 5 hp | 3.7 kW |
| Electical | 230v, 3-Phase/60 | 230v, 3-Phase/60 |
| Feeding Speed | 90 FPM | 90 FPM |
| Shipping Dimensions | 69" x 29" x 49" (crated) | 69" x 29" x 49" (crated) |
| Shipping Weight | 890 lb | 403.7 kg |
* Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items:
** 1-Phase: Additional $795
