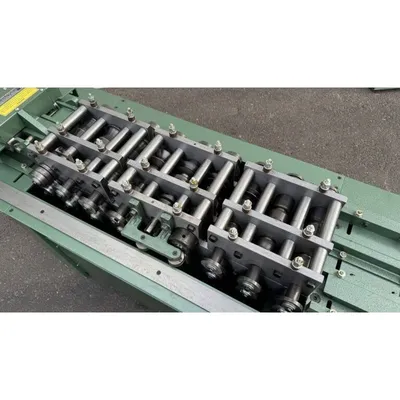

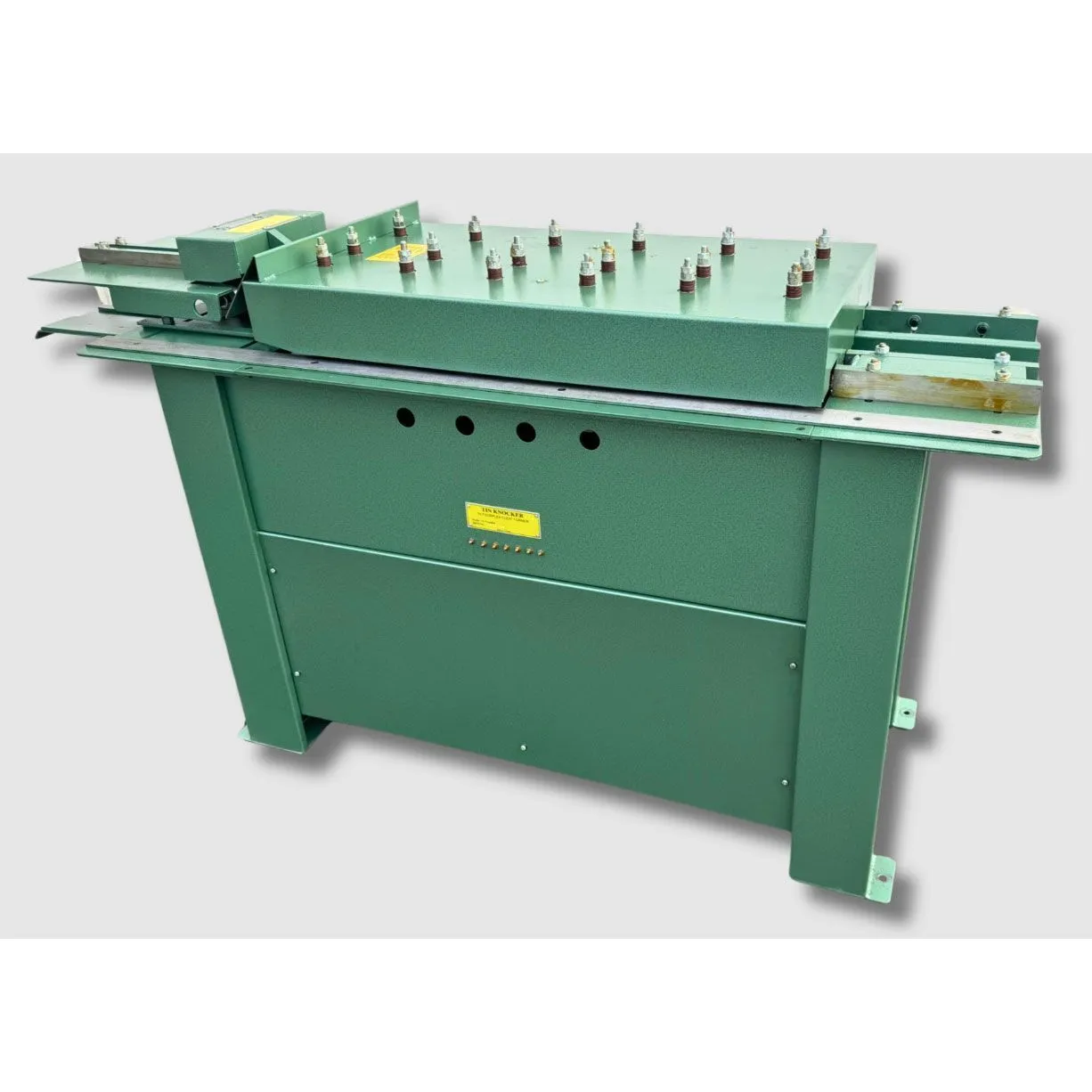

TIN KNOCKER Fourplex S & Drive Cleat Former w/Slitter Attachment has a capacity of 20 gauge. The motor is 5 HP (1,800 RPM) 230 Volt, 3 Phase, 60 Hz. Comes standard with S & Drive Slitter to turn scrap into useful product.
| Capacity - Width of S-Cleat | 1-1/16" | 1-1/16" |
| Capacity - Width of Drive Cleat | 1-1/18" | 1-1/18" |
| Capacity - Drive Cleats | 20-26 Ga | 20-26 Ga |
| Capacity - S Cleats | 22-28 Ga., 20-28 Ga. | 22-28 Ga., 20-28 Ga. |
| Capacity - Right Angle Flange | 22-26 Ga. | 22-26 Ga. |
| Capacity - Standing Seam | 22-26 Ga. | 22-26 Ga. |
| Capacity - Tee Connection | 22-26 Ga. | 22-26 Ga. |
| Capacity - Male & Female Button Lock | 20-24 Ga. | 20-24 Ga. |
| Power | 5 hp | 3.7 kW |
| Electical | 230v, 3-Phase, 60Hz (1,800 RPM) | 230v, 3-Phase, 60Hz (1,800 RPM) |
| Feeding Speed | 100 FPM | 100 FPM |
| Dimensions | 74 x 30 x 50 in. | 74 x 30 x 50 in. |
| Weight | 1,280 lbs | 1,280 lbs |
* Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
