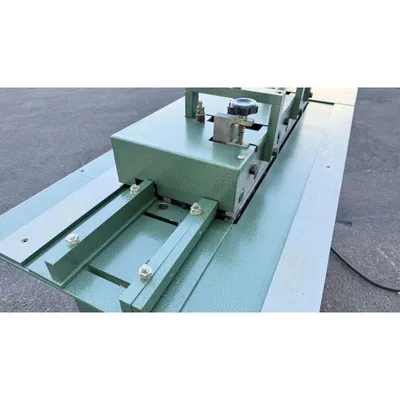

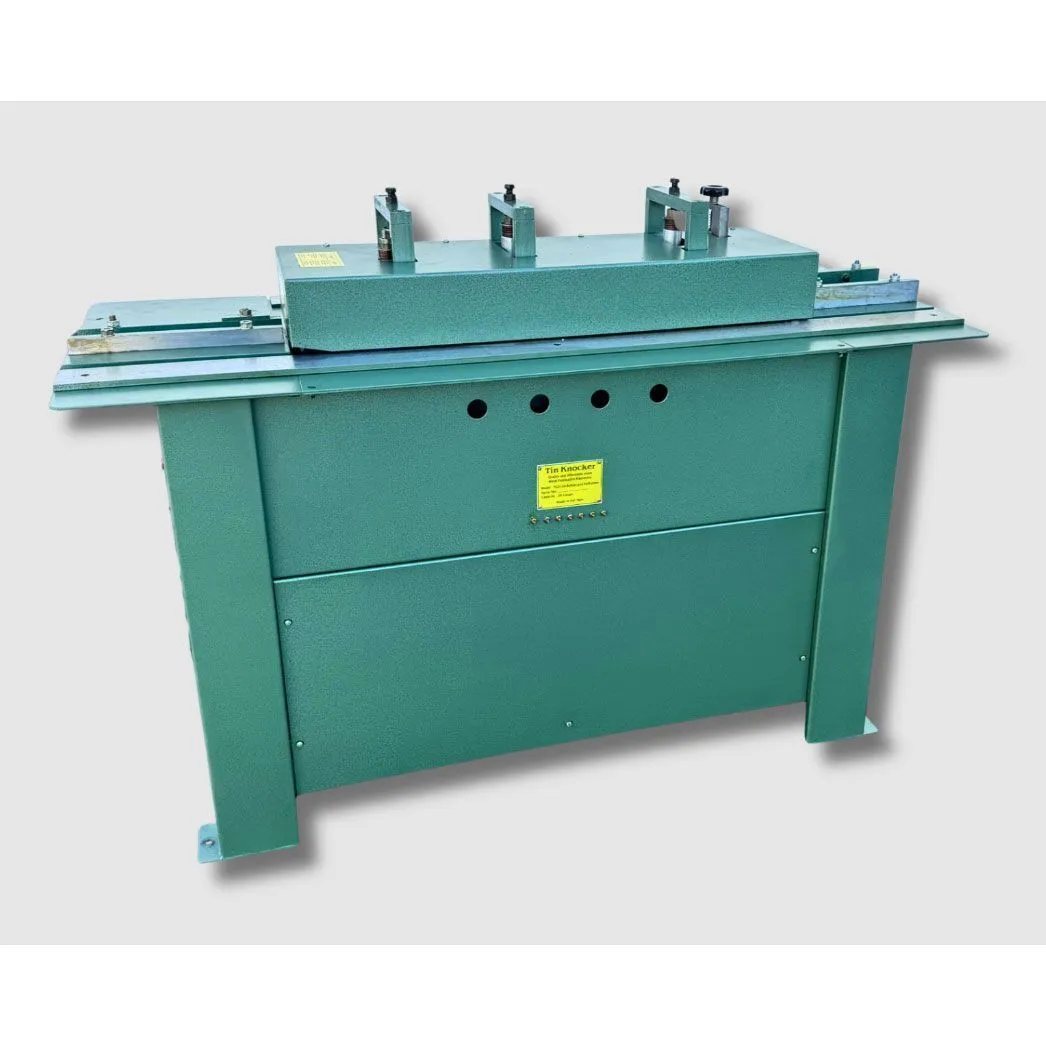

TIN KNOCKER Button Lock Roll Former has a capacity of 20 gauge. The motor is 3 HP, 230 volt/3 phase/60 (Available 5 HP, single phase is optional).9 Station Button Lock Rollformer means no hammering over of edges. The Button Lock roll former comes with "male" tooling on one side and "female" on the opposing side. A fast, effective way of marrying 20 to 26 gauge duct sections.
| Capacity | 20-26 Gauge | 20-26 Gauge |
| Power | 3 hp | 2.2 kW |
| Electical | 230v/3/60 (Available 5 HP, 1-phase is optional) ** | 230v/3/60 (Available 5 HP, 1-phase is optional) ** |
| Feeding Speed | Approx. 60 FPM | Approx. 60 FPM |
| Lube | Centralized | Centralized |
| Dimensions | 60 x 30 x 42 in. | 60 x 30 x 42 in. |
| Weight | 820 lbs. | 820 lbs. |
* Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items:
** 1-Phase: Additional $795
