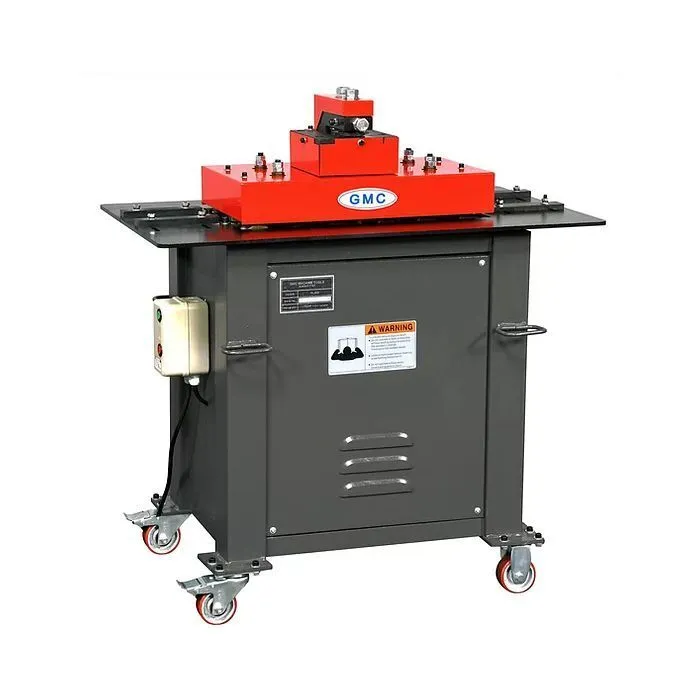

The PL-20E can handle sheet metal up to 20 gauge, making it suitable for a wide range of applications.1.5 HP Heavy Duty AC main motor, 110V. Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
| Capacity - Pittsburgh Lock | 26 Ga. - 20 Ga. | 26 Ga. - 20 Ga. |
| Capacity - Drive Cleat Lock | 26 Ga. - 22 Ga. | 26 Ga. - 22 Ga. |
| Capacity - Double Seam Lock | 26 Ga. - 20 Ga. | 26 Ga. - 20 Ga. |
| Capacity - Power Flange 1/4 in. | 26 Ga. - 20 Ga. | 26 Ga. - 20 Ga. |
| Depth of Pocket | 5/16 in. | 5/16 in. |
| Power | 1.5 hp | 1.1 kW |
| Electical | 110v, 10 AMP, Prewired: 110VAC | 110v, 10 AMP, Prewired: 110VAC |
| Feeding Speed | 32 FPM | 32 FPM |
| Shipping Dimensions | 38 x 25 x 42 in. | 38 x 25 x 42 in. |
| Dimensions | 36 x 23 x 43 in. | 36 x 23 x 43 in. |
| Weight | 458 lbs. | 458 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
RAR-20E: 1/4", 3/8" right angle roll set for PL-20E, 26 Ga. - 20 Ga.
