New | in-Stock

NEW TIN KNOCKER TK T-D-P

Florida, United States
Asking Price
USD $32,500.00
1 available
3,823Listings|9Followers
Overview
Roll Formers

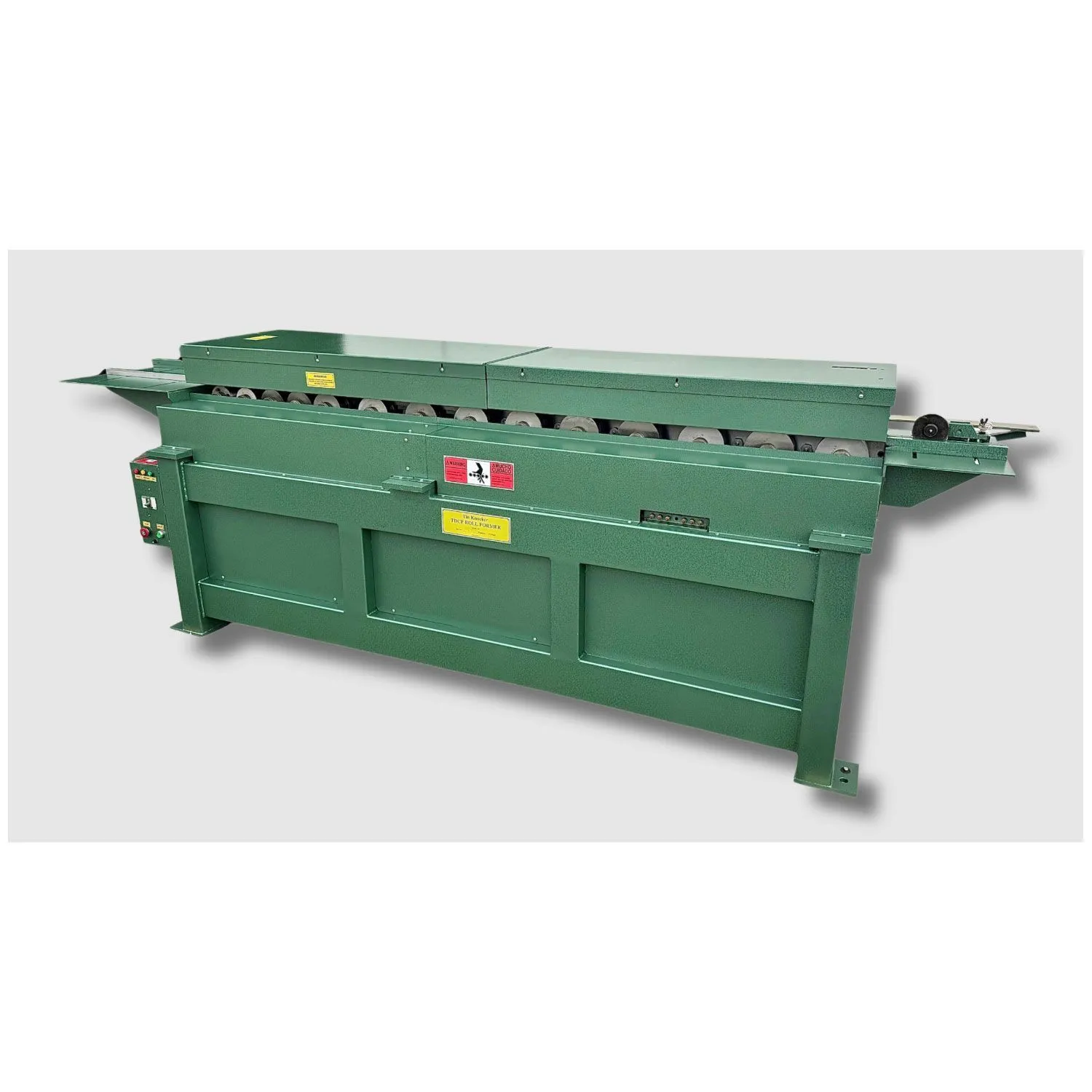

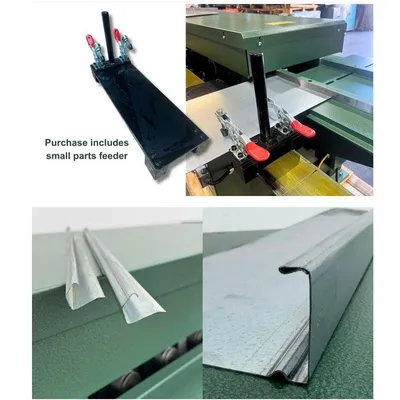

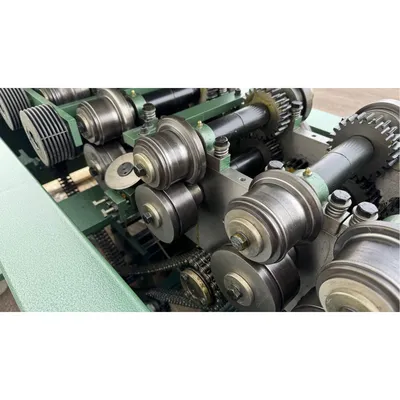

TIN KNOCKER Roll 18 gauge Former TK T-D-P is an affordable, full service, high quality transverse duct connector machine!It is a versatile machine. This 14 station roll former comes standard with the T-D-P rolls and the Clip rolls outboard, leaving the center tool space for other profile rolls.

Specs
Capacity
18-24 ga
18-24 ga
Feeding Speed
50 feet/min
50 feet/min
Electrical
230/460V, 3-Phase
230/460V, 3-Phase
Sheet Edge used to form profile
For T-D-P Uses approx. 1-7/8" of material on T-D-P ***
For T-D-P Uses approx. 1-7/8" of material on T-D-P ***
Forming Sections
14
14
Shaft Diameter
1.25"
31.75 mm
Passline
38.625"
981.07 mm
Dimensions
38" x 136.75" x 46" (LxWxH)
38" x 136.75" x 46" (LxWxH)
Weight
3,450 lbs.
3,450 lbs.

* Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150

*** 50 feet per minute T-D-P Clip (min. length 20") 22 ga. 2-1/8" 2-1/8"

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional Items:
** 1-Phase, 1 HP Motor: $850
