New | in-Stock

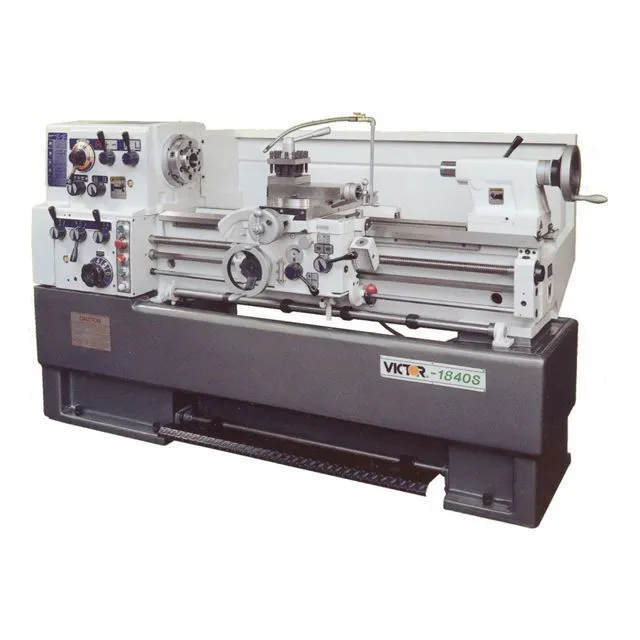

NEW VICTOR 1840S

Florida, United States
3,882Listings|10Followers
Overview
Gap Lathes

High performance precision heavy-duty lathe with rigid one piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high quality construction results in stability and consistency.

Specs
Lathe Type
Precision
Precision
Swing Over Bed
18"
457.2 mm
Distance Between Centers
40"
1,016 mm
Spindle Bore
2.37"
60.198 mm
Spindle Nose
D1-6
D1-6
Number Of Spindle Speeds
12 Steps
12 Steps
Range Of Speeds
30 ~ 2,000 rpm
30 ~ 2,000 rpm
Number of Inch Threads
2 ~ 56 TPI x 40 kinds
2 ~ 56 TPI x 40 kinds
Motor
7.5 hp
5.6 kW
Phase
3
3
Dimensions
89” x 40” x 61”
89” x 40” x 61”
Weight
4,400 lbs.
4,400 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:
8" 3-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Face plate
Full length splash guard
Halogen work light
Chuck cover with limit switch
