The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 18" | 457.2 mm |
| Distance Between Centers | 80" | 2,032 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Motor | 7.5 hp | 5.6 kW |
| Phase | 3 | 3 |
| Voltage | 230v | 230v |
| Dimensions | 136 x 44 x 66 in. | 136 x 44 x 66 in. |
| Weight | 6,590 lbs. | 6,590 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts

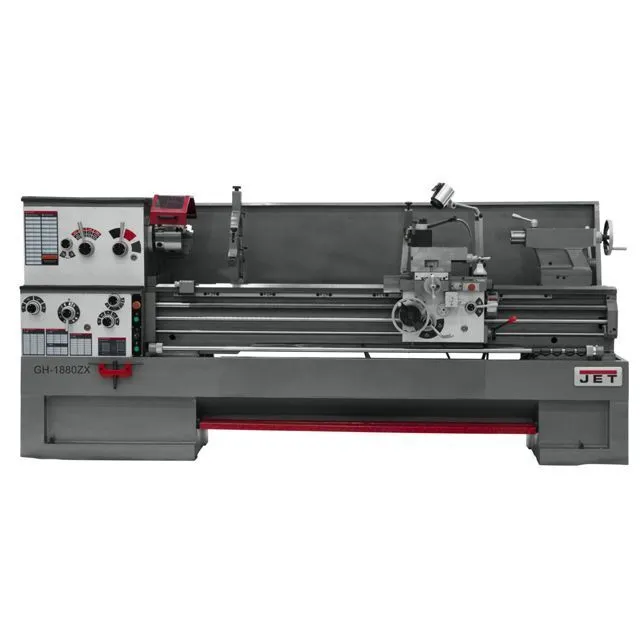

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
Digital Readouts (Available for installation or aftermarket sales)
Rotary Phase Converters - NOTE: Rotary phase converter must be 10HP or higher with high torque kit. Use of static phase converter will void warranty.
