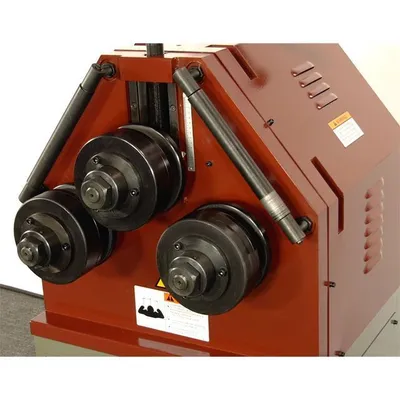

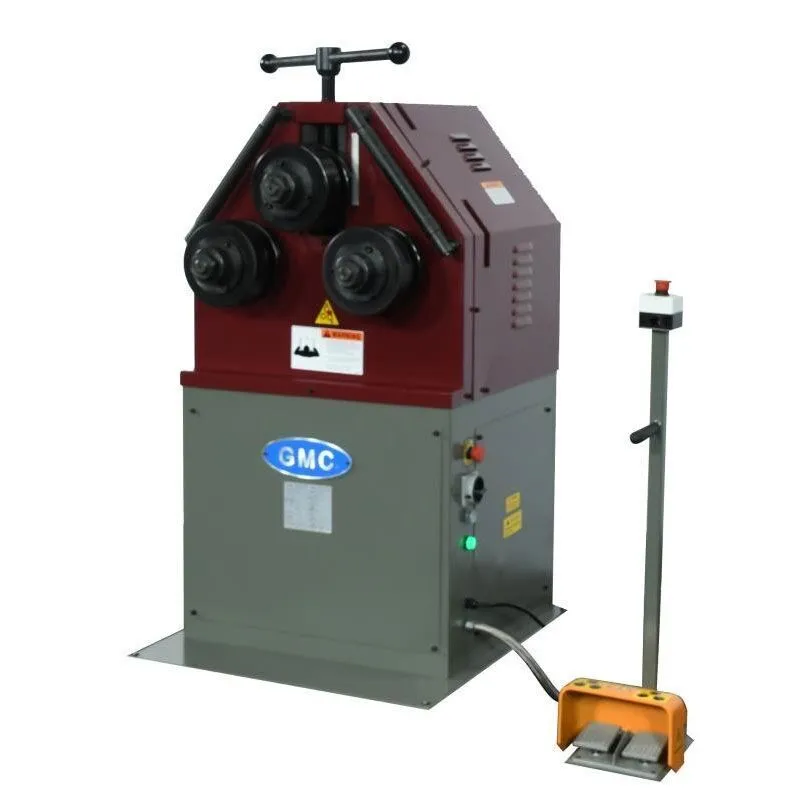

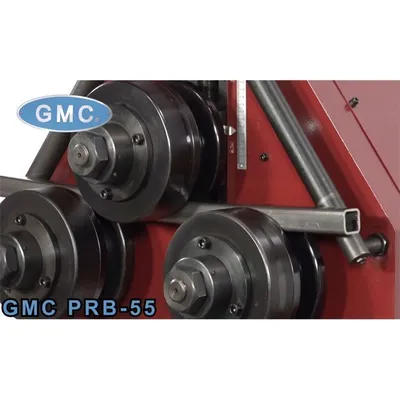

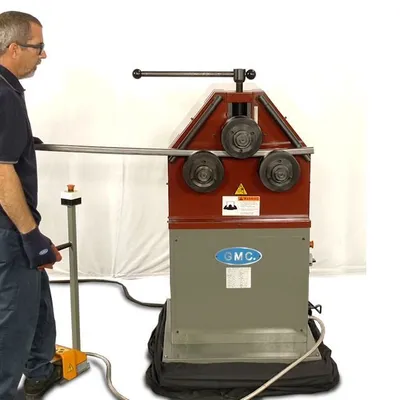

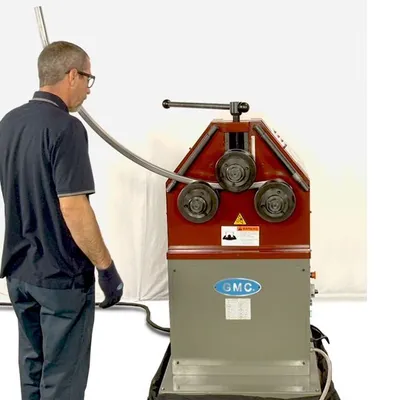

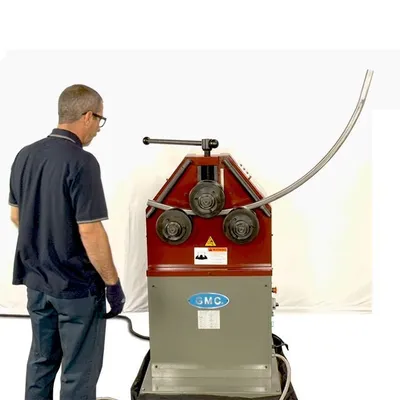

GMC PRB-55 Angle Roll Bender with Manual Positioning has a heavy duty 3HP AC main motor.2 inch schedule 40 pipe is the maximum bending capacity, 2.5 inch round tube 14 Ga. and 2 inch square tubeRobust, all steel and welded framework.
| Roll Diameter Ø | 7.5" | 0.2 m |
| Angle Roll Type | Manual | Manual |
| Shaft Ø | 2" | 50.8 mm |
| Motor Power | 3 HP, 220VAC 3-Phase (Optional 440VAC) | 3 HP, 220VAC 3-Phase (Optional 440VAC) |
| Roller Speed | 16 RPM | 16 RPM |

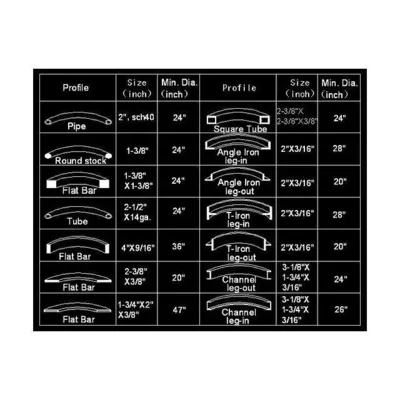

| Pipe Capacity | 2” schedule 40 / Min. Dia.24” | 2” schedule 40 / Min. Dia.24” |
| Round Tube Capacity | 2-1/2” x 14 Ga. (wall) / Min. Dia. 24” | 2-1/2” x 14 Ga. (wall) / Min. Dia. 24” |
| Square Tube Capacity | 2” x 2” x 3/16” (wall) / Min. Dia. 24” | 2” x 2” x 3/16” (wall) / Min. Dia. 24” |
| Solid Square Tube | 1-3/8” x 1-3/8” / Min. Dia. 24” | 1-3/8” x 1-3/8” / Min. Dia. 24” |
| Solid Round Capacity | 1-3/8” / Min. Dia. 24” | 1-3/8” / Min. Dia. 24” |
| Solid Flat Bar | 4” x 9/16” (wall) / Min. Dia. 36” | 4” x 9/16” (wall) / Min. Dia. 36” |
| Solid Flat Bar | 2-3/8” x 3/8” (wall) / Min. Dia. 20” | 2-3/8” x 3/8” (wall) / Min. Dia. 20” |
| Angle Flat Bar | 2-3/4” x 2” x 3/8” (wall) / Min. Dia. 47” | 2-3/4” x 2” x 3/8” (wall) / Min. Dia. 47” |
| Angle Iron Leg-In | 2” x 3/16” (wall) / Min. Dia. 28” | 2” x 3/16” (wall) / Min. Dia. 28” |
| Angle Iron Let-Out | 2” x 3/16” (wall) / Min. Dia. 20” | 2” x 3/16” (wall) / Min. Dia. 20” |
| T-Iron Leg-In | 2” x 3/16” (wall) / Min. Dia. 28” | 2” x 3/16” (wall) / Min. Dia. 28” |
| T-Iron Leg-Out | 2” x 3/16” (wall) / Min. Dia. 20” | 2” x 3/16” (wall) / Min. Dia. 20” |
| Channel Leg-Out | 3-1/8” x 1-3/4” x 3/16” / Min. Dia. 24” | 3-1/8” x 1-3/4” x 3/16” / Min. Dia. 24” |
| Dimensions | 40 x 35 x 65 in. | 40 x 35 x 65 in. |
| Weight | 1,050 lbs. | 1,050 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for Pricing:

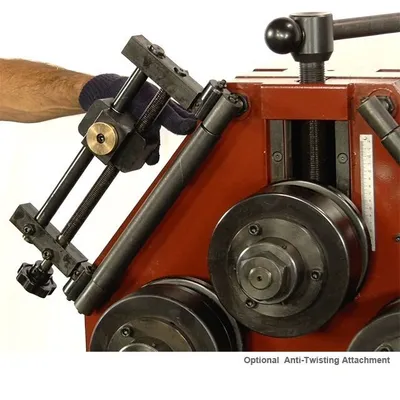

* Anti-twisting attachment
* One Roll Set (3 rolls) - for pipe & round tubing, any size:
* 34T-PRB55: TUBE ROLL SETS: 3/4"
* 1T-PRB55: TUBE ROLL SETS: 1"
* 114T-PRB55: TUBE ROLL SETS: 1-1/4"
* 112T-PRB55: TUBE ROLL SETS: 1-1/2"
* 2T-PRB55: TUBE ROLL SETS: 2"
* 212T-PRB55: TUBE ROLL SETS: 2-1/2"
* 34P-PRB55: PIPE ROLL SETS: 3/4"
* 1P-PRB55: PIPE ROLL SETS: 1"
* 114P-PRB55: PIPE ROLL SETS: 1-1/4"
* 112P-PRB55: PIPE ROLL SETS: 1-1/2"
* 2P-PRB55: PIPE ROLL SETS: 2"
