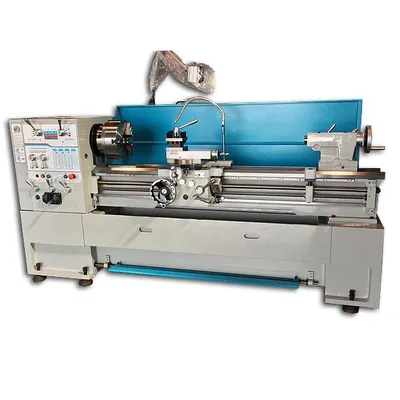

ACRA TE-3 Precision High Speed Engine Lathe Machine has a 3-1/8" Large Bore. High Quality - Made in Taiwan. Main Spindle Motor 17" std. 10 HP, 230/460V AC ~ 3 PH, 21" std. 12.5 HP, 230/460V AC ~ 3 PH.
| Lathe Type | High Speed Engine | High Speed Engine |
| Swing Over Bed | 17" | 431.8 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Spindle Nose | D1-8 | D1-8 |
| Motor | 10 hp | 7.5 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 94.5" x 45.5" x 68.7" | 94.5" x 45.5" x 68.7" |
| Weight | 4,500 lbs. | 4,500 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

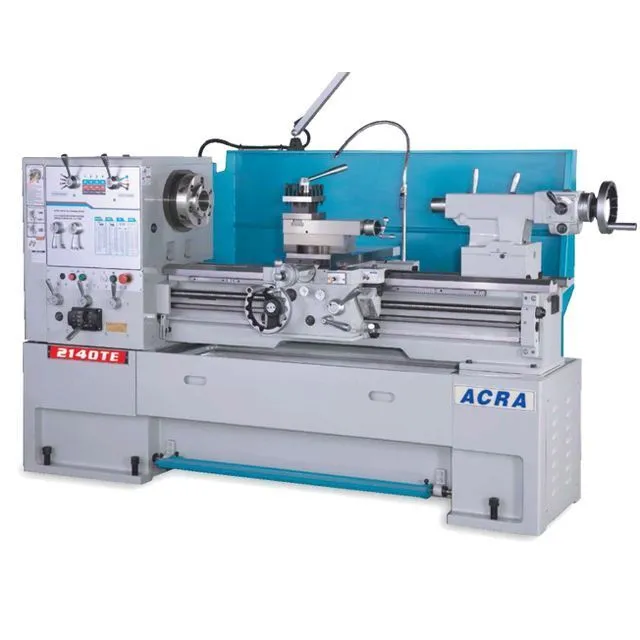

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Micro Bed Stop
Taper Attachment
Taper Attachment Installment
Lever Type 5C Collet Closer JFK D1-8
Import Collet Closer (Taiwan)
Newall Digital Read-Out 10" x 40" DP700
Newall Digital Read-Out 10" x 40" NMS300
Newall Digital Read-Out 10" x 60" DP700
Newall Digital Read-Out 10" x 60" NMS300
Newall Digital Read-Out 10" x 86" DP700
Newall Digital Read-Out 10" x 86" NMS300
Acu-Rite Digital Read-Out 10" x 40" 203
Acu-Rite Digital Read-Out 10" x 60" 203
Acu-Rite Digital Read-Out 10" x 86" 203
Acu-Rite Digital Read-Out 10" x 40" 303
Acu-Rite Digital Read-Out 10" x 60" 303
Acu-Rite Digital Read-Out 10" x 86" 303
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Chuck Guard
Live Center MT 4
