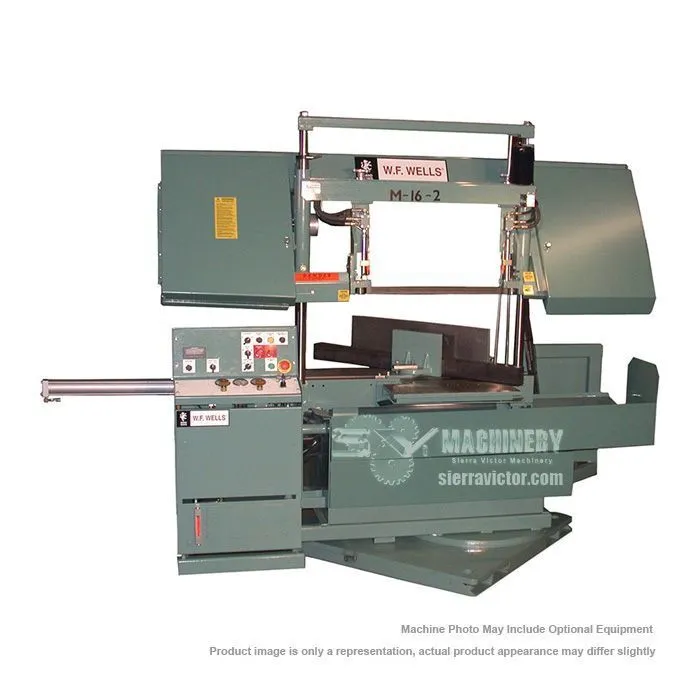

The M-16-2 series features hydraulic swivel base, automatic preset hydraulic blade tension, a hydraulic miter vise with variable clamping pressure and increased sawing pressure for severe applications. These features provide easier and more productive operator control. Made in the USA.
| Rectangle at 90° | 16 High x 26 Wide in. | 16 High x 26 Wide in. |
| Rectangle at -45° | 16 High x 16 Wide in. | 16 High x 16 Wide in. |
| Blade Size | 1-1/4” x .042” x 16' 8" | 1-1/4” x .042” x 16' 8" |
| Blade Guide | Rollers and Carbide Side Blocks | Rollers and Carbide Side Blocks |
| Blade Tension | Hydraulic | Hydraulic |
| Blade Speed | 60-500 sfpm | 60-500 sfpm |
| Blade Motor | 7-1/2 HP, AC Vector Drive | 7-1/2 HP, AC Vector Drive |
| Power | 208v-60-3ph + ** | 208v-60-3ph + ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Hydraulic Oil Tank Capacity | 20 gal | 75.7 L |
| Coolant Tank Capacity | 15 gal | 56.8 L |
| Weight Capacity | 5,000 lb | 2,268 kg |
| Bandwheel Size | 20" | 508 mm |
| Work Height | 35" | 889 mm |
| Vise | Hydraulic Miter | Hydraulic Miter |
| Shipping Dimensions | 120L x 60W x 90H in. | 120L x 60W x 90H in. |
| Shipping Weight | 3,800 lb | 1,723.7 kg |
+ Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010820: 208v-60-3ph
Order Number - 0010821: 230v-60-3ph
Order Number - 0010822: 460v-60-3ph
Order Number - 0010823: 575v-60-3ph
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
0056038: Hydraulic Holddown, Saw Vise
0056036: Hydraulic Chip Conveyor, Auger Style
Free Standing Outboard Vise
0056325: Laser Shadow Line
0056040: Blade Break/Stall Switch
0056204: Hydraulic Powered Conveyor 21" x 10'
0056252: Non-Powered Conveyor 21" x 5'
0056251: Non-Powered Conveyor 21" x 10'
Other Conveyor Options Available Upon Request – Please Call
*Please Call Sierra Victor Machinery For Additional Accessories
