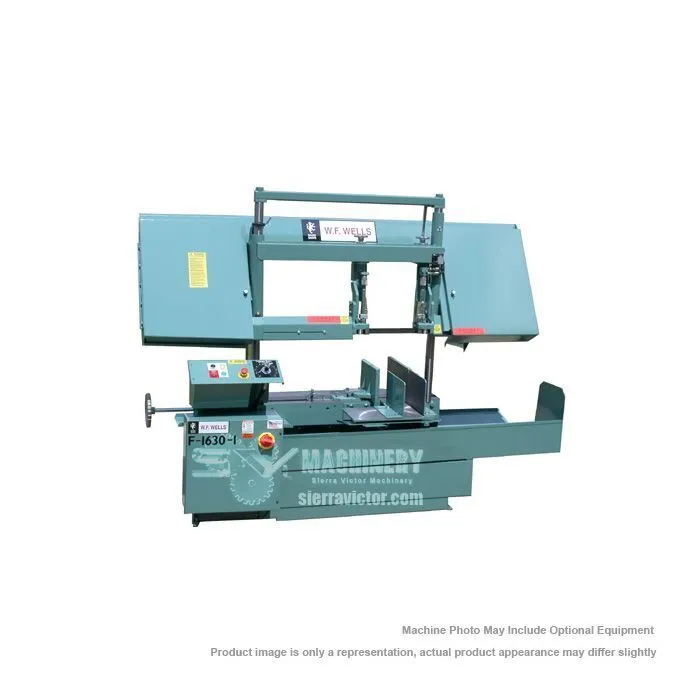

NEW WF WELLS F-1630-1
Overview
Description
The W.F. WELLS F-1630-1 Horizontal Cut Off Bandsaw is Semi-automatic Operation and has Manual Vise Operation. It also as a Built-in Coolant System, 45° Swiveling Vise and TEFC Motors. Made in the USA.
Specifications
| Round at 90° | 16" | 406.4 mm |
|---|---|---|
| Rectangle at 90° | 16 High x 30 Wide in. | 16 High x 30 Wide in. |
| Round at 45° | 13" | 330.2 mm |
| Rectangle at 45° | 16 High X 13 Wide in. | 16 High X 13 Wide in. |
| Blade Size | 1-1/4” x .042” x 16' 8" | 1-1/4” x .042” x 16' 8" |
| Blade Guide | Rollers and Carbide Side Blocks | Rollers and Carbide Side Blocks |
| Blade Tension | Manual with Indicator | Manual with Indicator |
| Sawing Force | 30-120 lbs. | 30-120 lbs. |
| Sawing Feed | Variable, Hydraulic | Variable, Hydraulic |
| Blade Speed | 60-500 sfpm | 60-500 sfpm |
| Blade Motor | 7-1/2 HP, AC Vector Drive | 7-1/2 HP, AC Vector Drive |
| Power | 208v-60-3ph + ** | 208v-60-3ph + ** |
| Hydraulic Motor | 1/3 HP | 1/3 HP |
| Hydraulic Oil Tank Capacity | 0.8 gal | 2.8 L |
| Coolant Motor | 15 | 15 |
| Weight Capacity | 5,000 lb | 2,268 kg |
| Bandwheel Size | 20" | 508 mm |
| Work Height | 26" | 660.4 mm |
| Vise | Manual, 8-1/2 in. | Manual, 8-1/2 in. |
| Shipping Weight | 2,500 lb | 1,134 kg |
| Dimensions | 118 L x 52 W x 88 H in. | 118 L x 52 W x 88 H in. |
+Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010573: 208v-60-3ph
Order Number - 0010574: 230v-60-3ph
Order Number - 0010575: 460v-60-3ph
Order Number - 0010576: 575v-60-3ph (5 HP)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Equipped With
Optional items - Call for price:
0056704: Automatic Length Stop Assembly
0056025: Discharge Worktable, 20" W x 48" L with Stock Stop
Discharge Worktable, 30" W x 48" L with Stock Stop
0052016: Work Light, Wired In
0056026: Air Vise Manual
0056037: Air Holddown
0056043: Blade Break/Stall Switch
0056023: Chip Conveyor, Electric, Auger Style
0056699: High Speed AC Drive (1" Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6" Centers
0050247: 21" X 5' X 5,000 lbs Cap. Distributed Weight
0050250: 21" X 10' X 10,000 lbs Cap. Distributed Weight
0050258: 31” x 5’ x 5,000 lbs Cap Distributed Weight
0050259: 31” x 10’ x 10,000 lbs Cap Distributed Weight
0056202: 21" x 10' Powered Conveyor, Electric
31” Powered Conveyor
