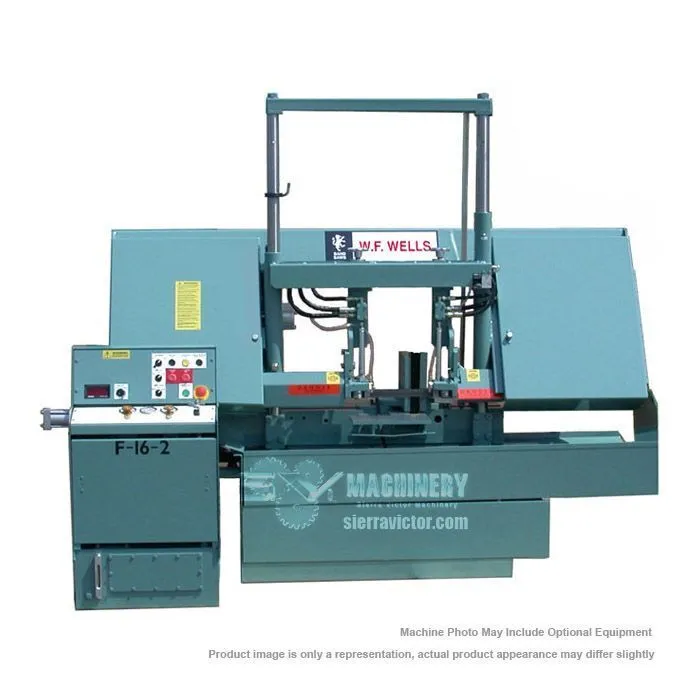

The F-16-2 series features automatic preset hydraulic blade tension, a hydraulic vise with variable clamping pressure and increased sawing pressure for severe applications. These features ensure easier and more productive operator control. MADE IN USA.
| Round at 90° | 16" | 406.4 mm |
| Rectangle at 90° | 16 High x 20 Wide in. | 16 High x 20 Wide in. |
| Round at 45° | 9" | 228.6 mm |
| Rectangle at 45° | 16 High X 9 Wide in. | 16 High X 9 Wide in. |
| Blade Size | 1-1/4” x .042” x 15' | 1-1/4” x .042” x 15' |
| Blade Guide | Rollers and Carbide Side Blocks | Rollers and Carbide Side Blocks |
| Blade Tension | Hydraulic | Hydraulic |
| Sawing Force | 0-750 lbs. | 0-750 lbs. |
| Blade Speed | 60-425 sfpm | 60-425 sfpm |
| Blade Motor | 7-1/2 HP, AC Vector Drive | 7-1/2 HP, AC Vector Drive |
| Power | 208v-60-3ph + ** | 208v-60-3ph + ** |
| Hydraulic Motor | 2 HP | 2 HP |
| Hydraulic Oil Tank Capacity | 20 gal | 75.7 L |
| Coolant Tank Capacity | 15 gal | 56.8 L |
| Weight Capacity | 5,000 lb | 2,268 kg |
| Bandwheel Size | 20" | 508 mm |
| Work Height | 26" | 660.4 mm |
| Vise | Full Stroke Hydraulic, 8-1/2 in. | Full Stroke Hydraulic, 8-1/2 in. |
| Shipping Weight | 2,450 lb | 1,111.3 kg |
| Dimensions | 97 L x 49 W x 83 H in. | 97 L x 49 W x 83 H in. |
+ Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010594: 208v-60-3ph
Order Number - 0010595: 230v-60-3ph
Order Number - 0010596: 460v-60-3ph
Order Number - 0010597: 575v-60-3ph (5 HP)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
0056707: Automatic Length Stop Assembly
0056041: Discharge Worktable, 20” W x 48” L with Stock Stop
0052021: Work Light, Wired In
0056040: Blade Break/Stall Switch
0056036: Electronic Chip Conveyor, Auger Style
0056038: Hydraulic Holddown, Saw Vise
0056204: Hydraulic Powered Conveyor 21" X 10'
Free Standing Roller Stock Conveyors, 6” Centers
922850: Hour Meter
0050030: 18" X 5' X 2,500 lbs Cap. Distributed Weight
0050029: 18" X 10' X 5,000 lbs Cap. Distributed Weight
0051037: High Speed Drive & Guides (1" Blade) 400-3000 SFPM
0050247: 21”X 5' X 5,000 lbs Cap. Distributed Weight
0050250: 21” X 10' X 10,000 lbs Cap. Distributed Weight
