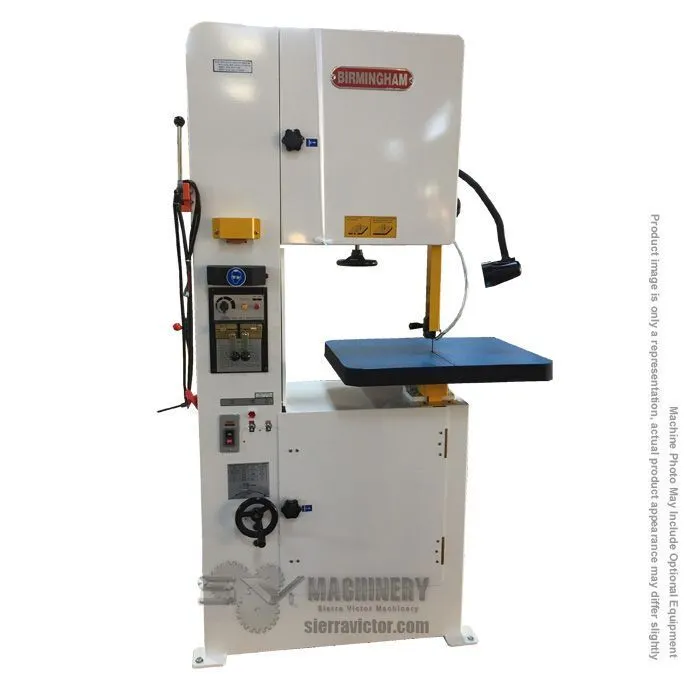

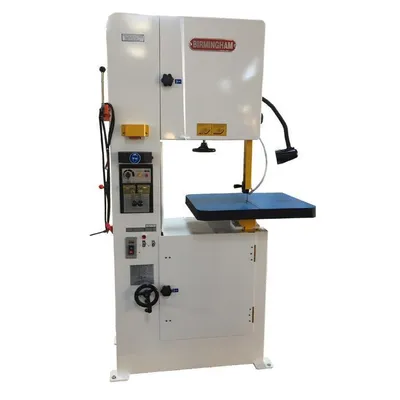

The BIRMINGHAM KB-45 17 in. Vertical Metal Cutting Band Saw has a saw blade butt welder with integrated annealing unit and a brush for cleaning lower drive wheel. It also has a low voltage working lamp.
| Throat Depth | 17.938" | 455.61 mm |
| Max. Work Height | 10.066" | 255.68 mm |
| Blade Length | 137-3/8 in. | 137-3/8 in. |
| Blade Width | 3-16mm | 3-16mm |
| Saw Blade Speeds | 25-115 (85-375) | 25-115 (85-375) |
| Table Size | 23-1/2 x 19-1/2 in. | 23-1/2 x 19-1/2 in. |
| Table inclination (4 ways) | 15° | 15° |
| Butt Welder Capacity | 1/8 - 5/8 in. (2.4 KVA 3-16mm) | 1/8 - 5/8 in. (2.4 KVA 3-16mm) |
| Motor | 1 HP | 1 HP |
| Power | 110v, 1-phase | 110v, 1-phase |
| Net Weight | 660 lb | 299.4 kg |
| Gross Weight | 772 lb | 350.2 kg |
| Dimensions | 43-11/16 x 26 x 79-1/4 in. | 43-11/16 x 26 x 79-1/4 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEARS - Parts
Optional Items - Call for price:
* Rip Fence for straight, repeated cuttings easily removable for varied sizes
* Miter protractor for angular cutting
* Electro-magnetic switch and overload protection
* Groove Table
