BIRMINGHAM YCL-1640 and YCL-1660 Precision Gap Bed Lathes have a 16 in. max swing over bed and 40 - 60 in. max length of workpiece.5 HP Main Motor (7-1/2 HP Optional)12 Speeds from 25 - 2,000 RPM, D1-6 Spindle with 2-9/32" bore and 60 kinds of inch threads from 112-2 TPI Main spindle hardened and precision ground
| Swing Over Bed | 16" | 406.4 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 2.28" | 57.912 mm |
| Spindle Nose | D1-6 | D1-6 |
| Motor | 7.5 hp | 5.6 kW |
| Dimensions | 86" x 41" x 53" | 86" x 41" x 53" |
| Weight | 4,100 lbs. | 4,100 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

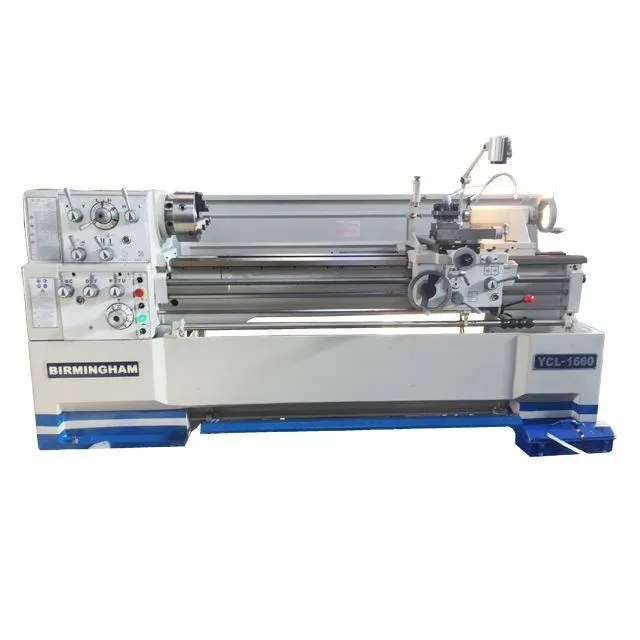

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
Taper Turning Attachment
Quick tool changer
5-C lever type collet closer
