Precision built lathe combines accuracy, rigidity and large 3-1/8" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 17" | 431.8 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 3.13" | 79.502 mm |
| Spindle Nose | D1-8 | D1-8 |
| Number Of Spindle Speeds | 12 Steps | 12 Steps |
| Range Of Speeds | 40 ~ 2,000 rpm | 40 ~ 2,000 rpm |
| Number of Inch Threads | 4 ~ 56 TPI x 36 kinds | 4 ~ 56 TPI x 36 kinds |
| Motor | 10 hp | 7.5 kW |
| Phase | 3 | 3 |
| Dimensions | 90” x 38” x 64” | 90” x 38” x 64” |
| Weight | 4,100 lbs. | 4,100 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

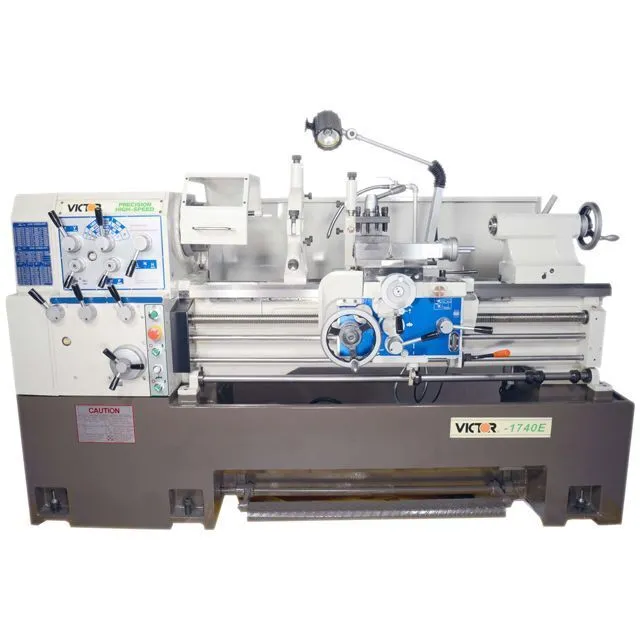

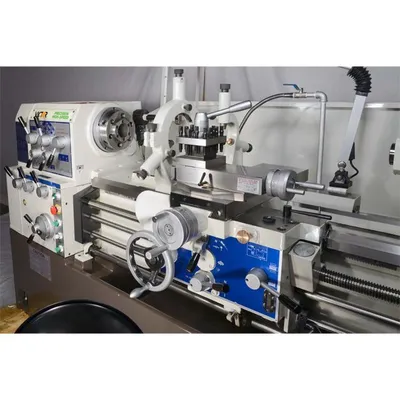

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Digital readout (DRO)
Quick change tool post
Taper turning attachment
3-jaw scroll chuck
4-jaw independent chuck
Full length splash guard
Driving plate
Steady rest with rollers
Follow rest
Face plate
4-position carriage stop
Micro carriage stop
Drill chuck and 4MT arbor
Live center 4MT
5C lever type collet closer
5C collet set
Change gears for D.P. and module thread
Halogen work light
