High performance precision heavy-duty lathe with rigid one piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high quality construction results in stability and consistency.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 16" | 406.4 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 2.03" | 51.562 mm |
| Spindle Nose | D1-6 | D1-6 |
| Number Of Spindle Speeds | 12 | 12 |
| Range Of Speeds | 30 ~ 2,000 rpm | 30 ~ 2,000 rpm |
| Number of Inch Threads | 2 ~ 56 TPI x 40 kinds | 2 ~ 56 TPI x 40 kinds |
| Motor | 7.5 hp | 5.6 kW |
| Phase | 3 | 3 |
| Dimensions | 89” x 38” x 65” | 89” x 38” x 65” |
| Weight | 4,290 lbs. | 4,290 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

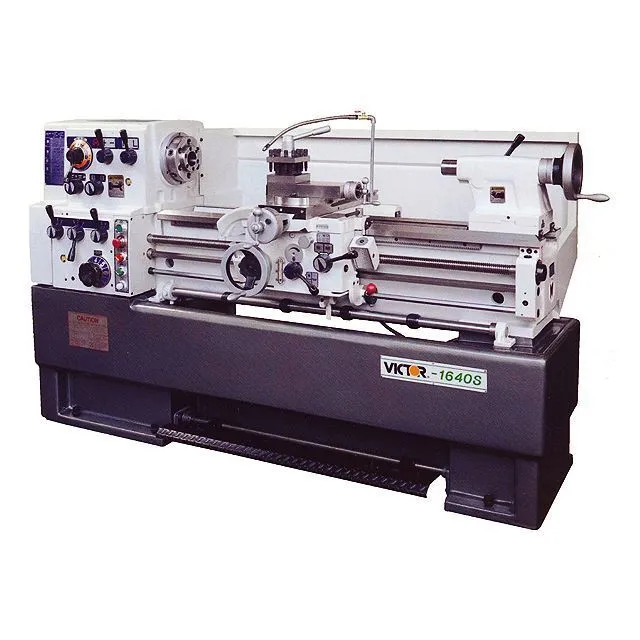

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
8" 3-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Face plate
Full length splash guard
Halogen work light
Chuck cover with limit switch
