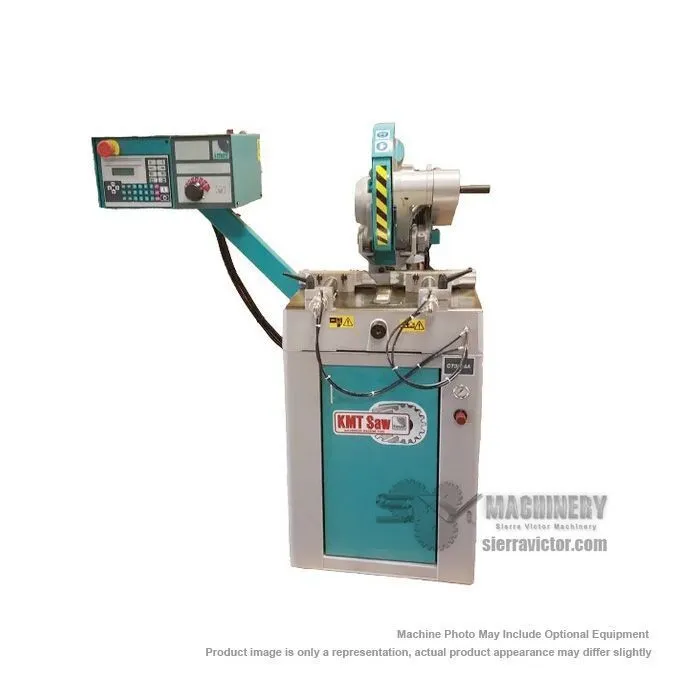

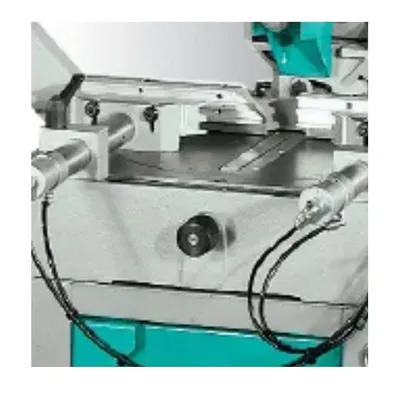

KMT SAW CT350SA Semi-Automatic High Speed Circular Saw has a blade diameter of 14" (350mm). The CT 350 Series Machines are high speed circular saws for aluminum extrusions and other non-ferrous materials. These machines feature swiveling capability for mitering and swiveling/tilting capability for compound mitering. Model CT 350 SA - Semi-automatic operation, with air over hydraulic system providing optimum sawing rates with minimum effort by the operator.
| Max Blade Diameter | 350 mm | 13.78" |
| Round at 0° | 4.5 in. | 4.5 in. |
| Square at 0° | 4 in. | 4 in. |
| Rectangular at 0° | 3 x 7.75 in. | 3 x 7.75 in. |
| Round at 45° Left | 4.5 in. | 4.5 in. |
| Square at 45° Left | 4 in. | 4 in. |
| Rectangular at 45° Left | 3 x 5.75 in. | 3 x 5.75 in. |
| Round at 45° Vert. Left | 2.5 in. | 2.5 in. |
| Square at 45° Vert. Left | 2.25 in. | 2.25 in. |
| Rectangular at 45° Vert. Left | 2 x 7 in. | 2 x 7 in. |
| Round at 45° Right | 4.5 in. | 4.5 in. |
| Square at 45° Right | 4 in. | 4 in. |
| Rectangular at 45° Right | 3 x 5.75 in. | 3 x 5.75 in. |
| Motor | 2.5 HP | 2.5 HP |
| Power | 220v/3 or 460v/3 (specify) | 220v/3 or 460v/3 (specify) |
| Blade Speed | (2 speed) 1,800/3,600 rpm | (2 speed) 1,800/3,600 rpm |
| Coolant Capacity | 2 gal | 7.6 L |
| Max. Vice Opening | 8" | 203.2 mm |
| Work Height | 34.25" | 869.95 mm |
| Dimensions | Across front 43 W in., Front to back 36 L in. | Across front 43 W in., Front to back 36 L in. |
| Weight | 700 lbs. | 700 lbs. |
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
AC121: Top Clamp
AC132: Chip Vac
