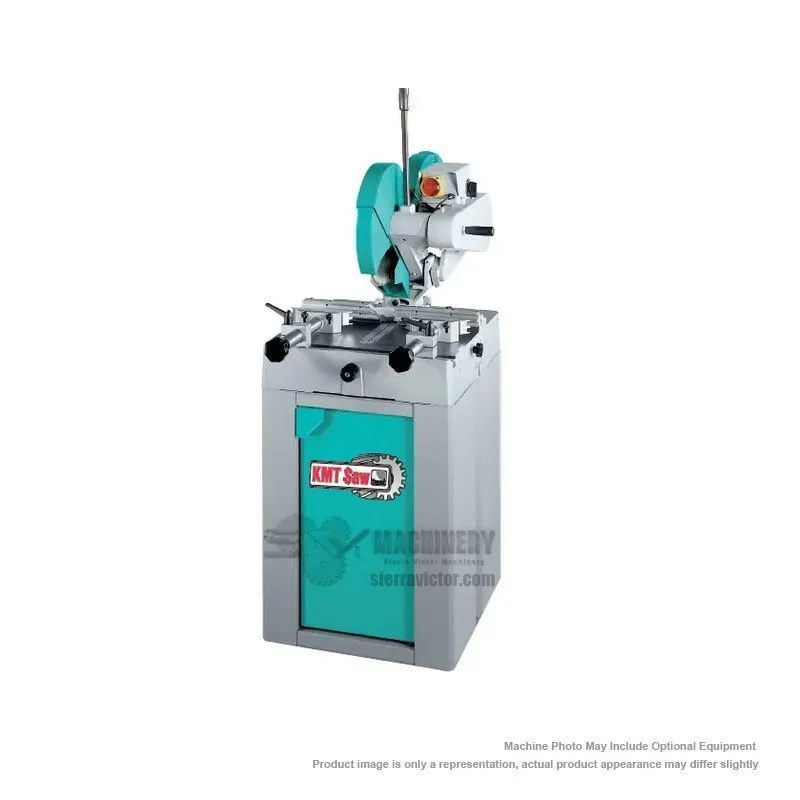

KMT SAW CT 350 AV Manual High Speed Circular Saw has a 14" saw blade diameter. The CT 350 Series Machines are high speed circular saws for aluminum extrusions and other non-ferrous materials. These machines feature swiveling capability for mitering and swiveling/tilting capability for compound mitering. Model CT 350 AV - Manual sawing operation with two quick clamping air vises.
| Max. Blade Diameter | 14" | 355.6 mm |
| Round at 0° | 4.5 in. | 4.5 in. |
| Square at 0° | 4 in. | 4 in. |
| Rectangle at 0° | 3 x 7.75 in. | 3 x 7.75 in. |
| Round at 45° right | 4.5 in. | 4.5 in. |
| Square at 45° right | 4 in. | 4 in. |
| Rectangle at 45° right | 3 x 5.75 in. | 3 x 5.75 in. |
| Round at 45° left | 4.5 in. | 4.5 in. |
| Rectangle at 45° left | 3 x 5.75 in. | 3 x 5.75 in. |
| Round at 45° vert. left | 2.5 in. | 2.5 in. |
| Square at 45° vert. left | 2.25 in. | 2.25 in. |
| Rectangle at 45° vert. left | 27 | 27 |
| Blade Speeds | 1,800 and 3,600 RPM (2-speed) | 1,800 and 3,600 RPM (2-speed) |
| Voltage | 220v/3, 460v/3, **220v/1 (specify) | 220v/3, 460v/3, **220v/1 (specify) |
| Vise Style | Quick Clamping Air Vises | Quick Clamping Air Vises |
| Max. Vise Opening | 8" | 203.2 mm |
| Work height | 34.25" | 869.95 mm |
| Shipping Weight | 550 lb | 249.5 kg |
| Dimensions | 32 W x 36 L in. | 32 W x 36 L in. |
| Weight | 550 lbs. | 550 lbs. |
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
**Additional Charge
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
AC121: Top Clamp
