New | in-Stock

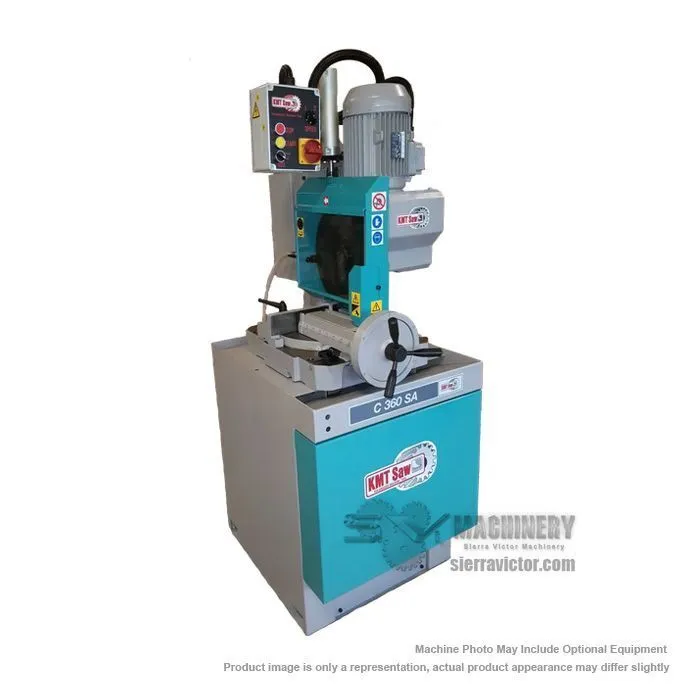

NEW KMT SAW C360 SA

Florida, United States
Asking Price
USD $14,500.00
1 available
3,886Listings|10Followers
Overview
Circular Cold Saws

KMT SAW C 360 SA Vertical Column Semi-Auto Cold Saw has a 14.5" Max Blade Diameter. The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero. C 370 series machines may be used to cut solid mild steel to the maximum capacity. Simple Semiautomatic operation.

Specs
Max Blade Diameter
370 mm
14.567"
Round at 0°
4.5 in.
4.5 in.
Square at 0°
4 in.
4 in.
Rectangular at 0°
4 x 7 in.
4 x 7 in.
Round at 45° Left
4.5 in.
4.5 in.
Square at 45° Left
4 in.
4 in.
Rectangular at 45° Left
4 x 5 in.
4 x 5 in.
Round at 45° Right
4 in.
4 in.
Square at 45° Right
4 in.
4 in.
Rectangular at 45° Right
4 x 5 in.
4 x 5 in.
Round at 60° Right
4.25 in.
4.25 in.
Square at 60° Right
3.75 in.
3.75 in.
Rectangular at 60° Right
3.5 x 3.5 in.
3.5 x 3.5 in.
Motor
4 HP
4 HP
Power
220/3 or 460/3 (specify)
220/3 or 460/3 (specify)
Spindle RPM
2 speed, 18/36
2 speed, 18/36
Spindle Diameter
40 mm
1.5748"
Max. Vice Opening
7.25"
184.15 mm
Work Height
36.25"
920.75 mm
Shipping Weight
1,000 lb
453.6 kg
Dimensions
25 w x 31 deep in.
25 w x 31 deep in.
Weight
1000 lbs.
1000 lbs.

*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
AC117: Footswitch
AC116: Spray mist coolant
AC128: Top clamp
AC330: Variable vise pressure
