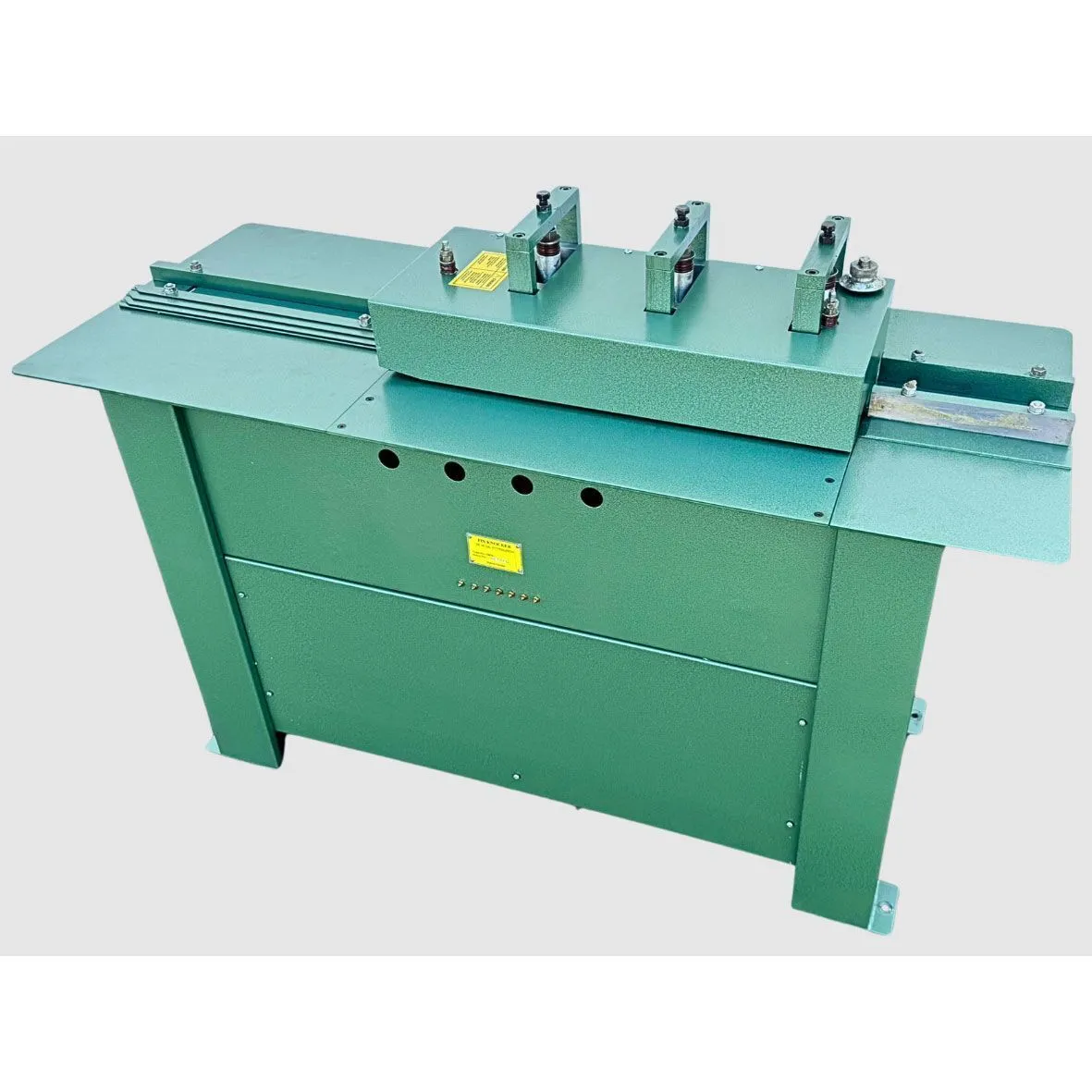

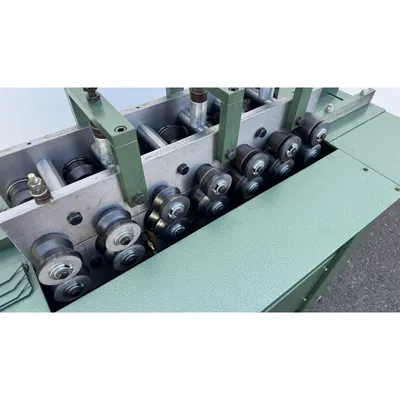

TIN KNOCKER TK16 Pittsburgh Roll Former has a capacity of 16 gauge.The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions. One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, to include: Acme, Drive Cleat or 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection).
| Capacity | 16-20 Ga. uses approx. 1-3/8” of material | 16-20 Ga. uses approx. 1-3/8” of material |
| Depth of Pocket | 1/2” width of hammer-over edge adjustable up to 3/8 | 1/2” width of hammer-over edge adjustable up to 3/8 |
| Power | 3 hp | 2.2 kW |
| Electical | 230v, 3-Phase/60, (1-PH Optional - Please Specify) ** | 230v, 3-Phase/60, (1-PH Optional - Please Specify) ** |
| Feeding Speed | 40-45 ft per minute | 40-45 ft per minute |
* Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items:
** 1-Phase: Additional $795
