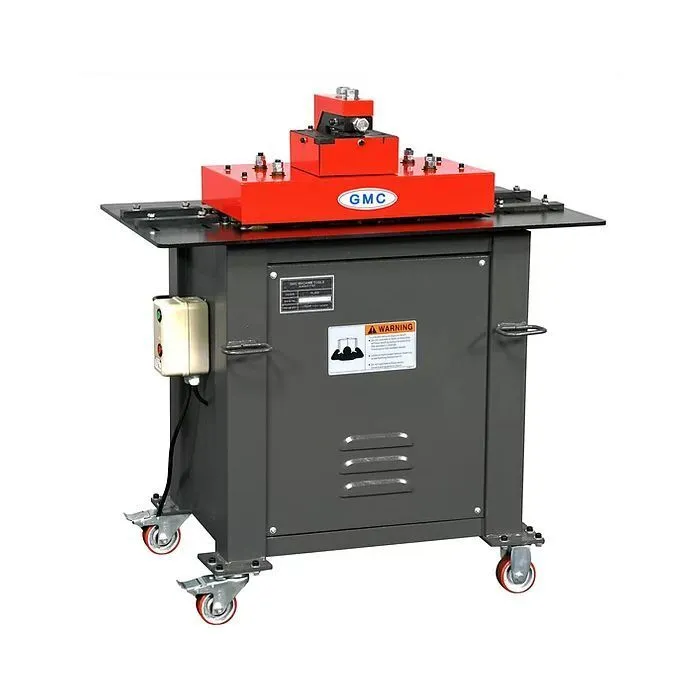

16 gauge capacity: The PL-16E can handle sheet metal up to 16 gauge, making it suitable for a wide range of applications.3 HP Heavy Duty AC main motor, 220V, 3 phase.Creates Pittsburgh seams, standing seams, and various other ductwork shapes.
| Capacity - Pittsburgh Lock | 20 Ga. - 16 Ga. | 20 Ga. - 16 Ga. |
| Capacity - Drive Cleat Lock | 24 Ga. - 22 Ga. | 24 Ga. - 22 Ga. |
| Capacity - Double Seam Lock | 20 Ga. - 16 Ga. | 20 Ga. - 16 Ga. |
| Capacity - Power Flange 1/4 in. | 20 Ga. - 16 Ga. | 20 Ga. - 16 Ga. |
| Depth of Pocket | 1/2 in. | 1/2 in. |
| Power | 3 hp | 2.2 kW |
| Electical | 3-Phase, 10 AMP, Prewired: 220VAC (220V, 1-Phase is optional) | 3-Phase, 10 AMP, Prewired: 220VAC (220V, 1-Phase is optional) |
| Feeding Speed | 23 FPM | 23 FPM |
| Shipping Dimensions | 43 x 27 x 48 in. | 43 x 27 x 48 in. |
| Dimensions | 43 x 27 x 48 in. | 43 x 27 x 48 in. |
| Weight | 628 lbs. | 628 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
RAR-16E: Right angle roll set for PL-16E - Call for pricing
Digital Inverter Drive control box for converting to PL-16E-1phase
