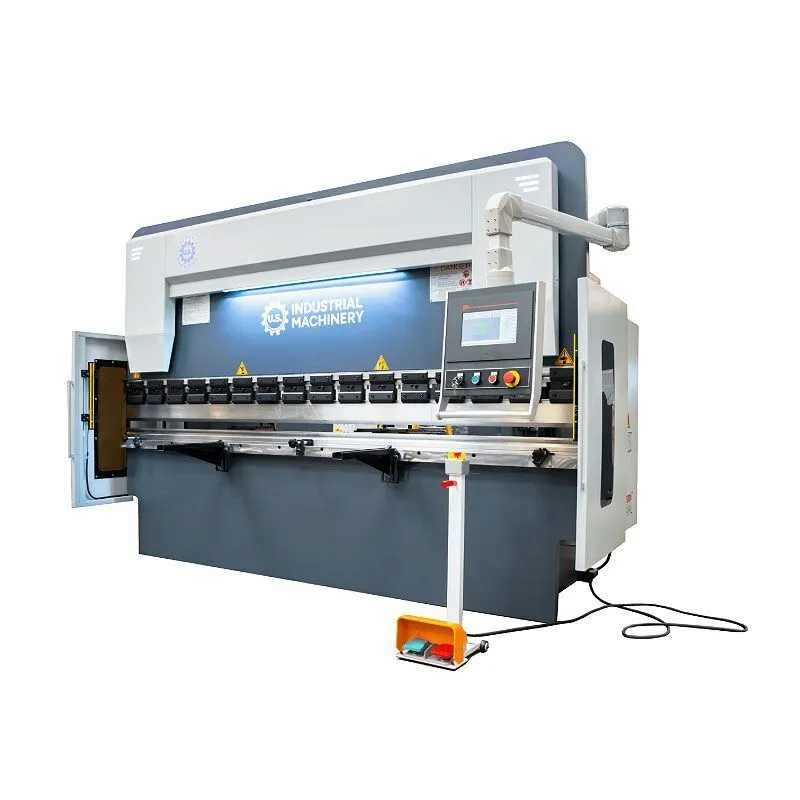

U.S. INDUSTRIAL USHB200-13CNC CNC Hydraulic Press Brake has a 200 Ton working pressure and 13 ft Length of working table.Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume. These 200 ton hydraulic press machines can handle the most demanding jobs with impeccable details. Key features include: 6” LCD touchscreen to control the bend angle and back-gauge position, 10 bends per program or cross-section, Up to 20 punch library and up to 50 die library, Auto bend sequence, Auto back-gauge retract, Spread length, Interference bend chart, Calculated bend allowance, Programmable ram dwell And more.
| Pressure/Tonnage | 200 T | 181.437 t |
| # Axis | 2 | 2 |
| Throat Depth | 12.5" | 317.5 mm |
| Table Length | 157.4" | 3,998 mm |
| Pressing Speed | Dependent on Tool Load | Dependent on Tool Load |
| Rapid Ram Travel Speed | 2.4 in/sec. | 61 mm/sec. |
| Rapid Ram Retreat Speed | 2 in/sec. | 50.8 mm/sec. |
| Distance Between Housings | 124" | 3,149.6 mm |
| Backgauge Travel | 24" | 609.6 mm |
| Main Motor | 20 HP, 220 or 440V, 3ph (specify) | 20 HP, 220 or 440V, 3ph (specify) |
| Stroke Adjustment of Ram | 2.75" | 69.85 mm |
| Ram travel | 7" | 177.8 mm |
| Open Height | 17.5" | 444.5 mm |
| Hydraulic Oil Capacity | 97 gal | 367.2 L |
| Shipping weight | 28,660 lb | 13,000 kg |
| Control | CNC | CNC |
| Dimensions | 179 x 64 x 101 in. | 179 x 64 x 101 in. |
| Weight | 28,660 lbs. | 28,660 lbs. |
*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
