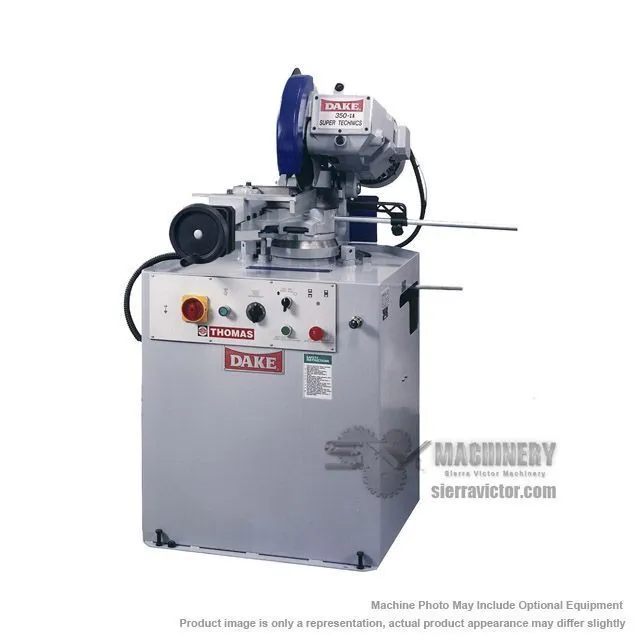

The DAKE Technics 350SA Semi-automatic cold saw has a push-button or foot switch activation, an oversized pedestal base, shroud enclosed head feed cylinder and an adjustable pneumatic vise. Variable speed controlled by a frequency inverter increases the material cutting range.Head rotates 45º right and 60º left of center for easy miter cutting.
| Material Type | Ferrous/Non-Ferrous/Plastic | Ferrous/Non-Ferrous/Plastic |
| Max Blade Diameter | 14" | 355.6 mm |
| Round Solid at 45° | 3 in. | 3 in. |
| Round Solid at 90° | 3-3/8 in. | 3-3/8 in. |
| Round Tube at 45° | 4 in. | 4 in. |
| Round Tube at 90° | 4-3/4 in. | 4-3/4 in. |
| Square Tube at 45° | 3-3/8 in. | 3-3/8 in. |
| Square Tube at 90° | 4-1/8 in. | 4-1/8 in. |
| Rectangle Tube at 45° | 3-3/8 x 2-3/4 in. | 3-3/8 x 2-3/4 in. |
| Rectangle Tube at 90° | 6-1/4 x 3-1/2 in. | 6-1/4 x 3-1/2 in. |
| Motor | 3.5 HP Max | 3.5 HP Max |
| Power | 220v, 3ph 3-Speed (*440v optional) | 220v, 3ph 3-Speed (*440v optional) |
| Spindle RPM | 20-105 rpm | 20-105 rpm |
| Max. Vice Opening | 6.625" | 168.27 mm |
| Maximum Angle | 60° left/ 45° right | 60° left/ 45° right |
| Slotting Capable | No | No |
| Dimensions | H 60 x W 33 x D 50 in. | H 60 x W 33 x D 50 in. |
| Weight | 890 lbs. | 890 lbs. |
*440v model requires step-down transformer for operation (part number: 300674) Sold Separately - Call for price
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
301644: Loading Table
301645: Unloading Table with Scale and Stop
79846: Blade Starter Pack
300674: Step-down transformer for operation
