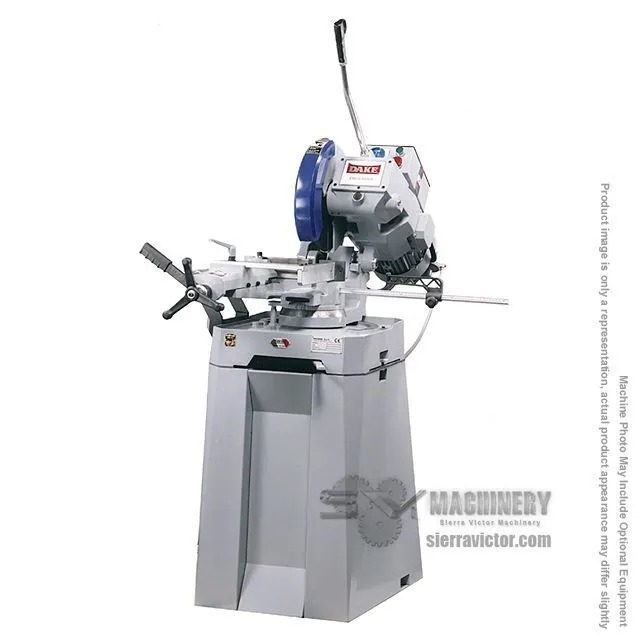

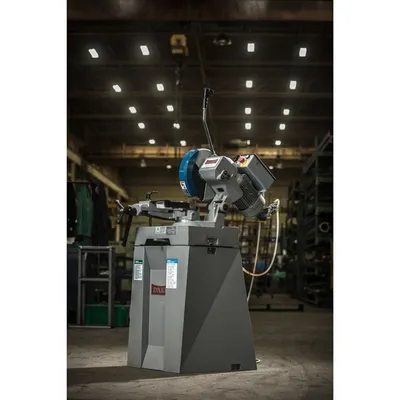

The DAKE Technics 350CE Manual cold saw for sale will rotate to 90º right for slot cutting and offers variable speeds. Head rotates 45º right and left of center for mitering. A mechanical coolant pump with flow control is included. Available in 220V or 440V operation.
| Material Type | Ferrous/Non-ferrous/Plastics | Ferrous/Non-ferrous/Plastics |
| Max. Blade Diameter | 14" | 355.6 mm |
| Tubing Round at 45° | 4 in. | 4 in. |
| Tubing Round at 90° | 4-3/4 in. | 4-3/4 in. |
| Solid Round at 45° | 3 in. | 3 in. |
| Solid Round at 90° | 3-3/8 in. | 3-3/8 in. |
| Tubing Rectangle at 45° | 3-3/8 x 2-3/4 in. | 3-3/8 x 2-3/4 in. |
| Tubing Rectangle at 90° | 6-1/4 x 3-1/2 in. | 6-1/4 x 3-1/2 in. |
| Tubing Square at 45° | 3-3/8 in. | 3-3/8 in. |
| Tubing Square at 90° | 4-1/8 in. | 4-1/8 in. |
| Blade Speeds | 22-88 rpm | 22-88 rpm |
| Motor | 3.5 HP | 3.5 HP |
| Voltage | 220v, 3-phase (optional: 440v) | 220v, 3-phase (optional: 440v) |
| Max. Vise Opening | 6.625" | 168.27 mm |
| Maximum Angle | 45° left/right; 90° right for slot cutting | 45° left/right; 90° right for slot cutting |
| Slotting | Yes | Yes |
| Cutting Ability | Ferrous/non-ferrous/plastics | Ferrous/non-ferrous/plastics |
| Work height | 40" | 1,016 mm |
| Dimensions | H 75 in. x W 24-3/4 in. x D 23 in. | H 75 in. x W 24-3/4 in. x D 23 in. |
| Weight | 650 lbs. | 650 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
301644: 78" Loading Table
301645: 78" Unloading Table
Pneumatic Vice
Blade Starter Pack- 3, 14" Blades
300674: Step-down transformer for operation
